Working on automotive electronics often means needing quick and reliable insights. Having the right handheld oscilloscope on hand can make troubleshooting much easier.
But choosing one isn’t straightforward. There are many options with different bandwidths, sampling rates, and added features. Sometimes a compact size means sacrificing screen size or advanced functions. Other times, better specs come with a higher price and more complexity. Balancing portability, capability, and budget can be tricky.
This article will help you understand the key factors and find a handheld oscilloscope suited for automotive use that fits your needs.
What Actually Matters When Choosing
In automotive work, the ability to capture fast signals and view them clearly matters most. Extra features like signal generators or multimeters can be useful but aren’t essential for everyone. Battery life and ease of use also play important roles, especially in the field.
The following products are grouped by their capabilities and intended uses. Some focus on basic, portable measurements, while others offer broader functions and higher performance. Your choice will depend on what matters most in your work and budget.

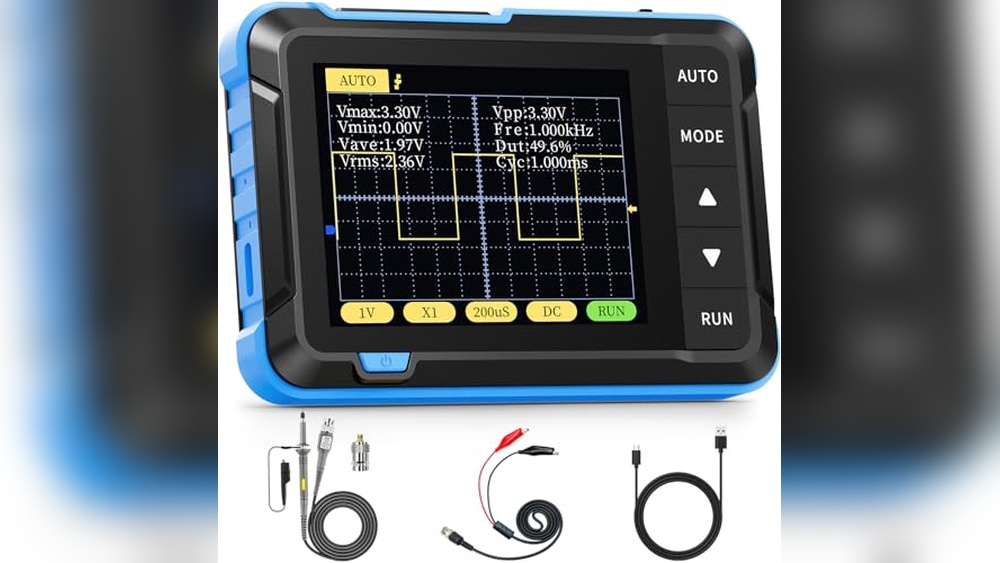

Fnirsi Portable Automotive Oscilloscope
The Best Handheld Oscilloscope for Automotive Use, ideal for mechanics and automotive technicians needing reliable signal diagnostics on the go.
.ap-btn{ transition:transform .15s ease, filter .15s ease; } .ap-btn:hover{ transform:translateY(-1px); filter:brightness(.95); }
The FNIRSI DSO152 is a compact, handheld digital oscilloscope designed specifically for automotive diagnostics and other lab applications. It addresses the challenge of capturing both analog and digital signal waveforms with ease, featuring a fast real-time sampling rate of 2.5 MS/s and a 200 KHz bandwidth that ensures accurate measurement of automotive signals up to 400 V. Its built-in trigger modes support precise waveform capture in various conditions.
Using this portable oscilloscope in real life feels intuitive and efficient thanks to its 2.8-inch HD LCD and one-key auto setting that eliminates complicated adjustments. Its pocket-sized design and reliable battery life of about 4 hours provide convenience and confidence during fieldwork or workshop tasks, saving valuable time when troubleshooting vehicle electronics.
Key Advantages for Automotive Use
- High sampling speed and bandwidth for accurate automotive signal analysis
- Full trigger modes (Auto, Normal, Single) for capturing complex waveforms
- Compact and lightweight for easy portability in the field
- Long-lasting rechargeable battery with USB Type-C charging and data support
- Clear 2.8″ color LCD with 320 x 240 resolution for easy waveform observation
Who Should Consider This Oscilloscope?
This handheld oscilloscope is well suited for automotive technicians, mechanics, and R&D professionals who need a reliable, portable tool for on-site vehicle diagnostics. If you require a straightforward device that handles common automotive signals without the complexity of larger lab equipment, this product is a practical choice.
However, if you need a scope with bandwidth beyond 200 KHz or extensive advanced features for industrial electronics, this model might feel limited. The DSO152 removes the confusion around waveform capture by offering clear trigger options and simple calibration controls, making it easier to focus on diagnosis rather than device setup.
A practical tip: regularly use the one-key AUTO setting to quickly calibrate baseline waveforms before measurement to ensure consistent accuracy. Rest assured, this oscilloscope’s reliability and portability will help keep your automotive troubleshooting smooth and efficient.
Fnirsi 2c53t Handheld Oscilloscope
The FNIRSI 2C53T is an excellent Best Handheld Oscilloscope for Automotive Use, ideal for mechanics, hobbyists, and electronics professionals who need portable, reliable diagnostics.
.ap-btn{ transition:transform .15s ease, filter .15s ease; } .ap-btn:hover{ transform:translateY(-1px); filter:brightness(.95); }
The FNIRSI 2C53T is a compact handheld oscilloscope designed for automotive diagnostics and electronic troubleshooting. It combines a 50 MHz bandwidth oscilloscope with a multimeter and DDS signal generator, making it a versatile tool that helps users accurately measure voltage, current, resistance, capacitance, and more. Its enhanced math operations and waveform storage capabilities improve measurement precision and workflow efficiency.
Using the FNIRSI 2C53T feels intuitive and dependable, especially in automotive settings where space is limited and quick diagnostics are crucial. The device’s portability and clear display allow me to confidently capture and compare waveforms, saving time and avoiding guesswork during vehicle inspections or electronic repairs.
- Upgraded version with added math operation, cursor measurement, persistence and XY modes
- 2-channel oscilloscope with 50 MHz bandwidth and 250 MS/s sampling rate
- Built-in 4.5-digit multimeter with broad measurement ranges (voltage, current, resistance, capacitance)
- Signal generator with 13 waveform outputs up to 50 kHz
- One-click save and waveform comparison via PC connection
Who Should Consider This Device
This oscilloscope is perfect for automotive technicians, electronics hobbyists, and educators who need a multifunctional, portable tool for detailed circuit analysis. Its broad measurement capabilities and signal generator make it a practical all-in-one device for various testing scenarios.
If you primarily require a high-end oscilloscope with bandwidths above 50 MHz or advanced industrial-grade features, this model may feel limited. Also, those unfamiliar with digital oscilloscopes might require some time to get accustomed to its advanced functions.
This oscilloscope removes the stress of juggling multiple devices by combining key testing functions into one compact unit. A helpful tip is to leverage the waveform save and export features to document and compare measurements easily over time. You can be reassured that the FNIRSI 2C53T offers reliable accuracy and solid build quality backed by positive user feedback and thoughtful upgrades.
Fnirsi 4-in-1 Handheld Oscilloscope
The Best Handheld Oscilloscope for Automotive Use, ideal for technicians and engineers who need versatile diagnostic tools on the go.
.ap-btn{ transition:transform .15s ease, filter .15s ease; } .ap-btn:hover{ transform:translateY(-1px); filter:brightness(.95); }
The FNIRSI 4-in-1 Handheld Oscilloscope combines an oscilloscope, spectrum analyzer, frequency response analyzer, and DDS signal generator into one compact device. It addresses the need for a portable, multi-functional diagnostic tool that can handle automotive electronics testing with up to 350MHz bandwidth and a 7-inch touchscreen for easy operation. Its spectrum analyzer feature is particularly useful for EMI checks and signal integrity analysis.
Using this oscilloscope in the field feels intuitive and efficient thanks to its touchscreen interface and smart features like waveform storage and auto power-off. Its reliable 8000 mAh battery ensures long usage without frequent recharging, making it easier to trust the readings and spend less time setting up tests and more time diagnosing automotive issues confidently.
- 4-in-1 functionality: oscilloscope, spectrum analyzer, frequency analyzer, and signal generator
- High bandwidth (350MHz) with 2 channels and 1 GSa/s sampling rate
- Large 7″ touchscreen for clear visualization and easy control
- Portable with a robust 8000 mAh battery and USB-C charging
- Supports complex waveform storage and FFT display for advanced analysis
Who Should Consider This Oscilloscope
This handheld oscilloscope is perfect for automotive technicians and electronic engineers who require a versatile tool capable of detailed signal analysis and diagnostics in various environments. If you often need to measure frequency response or analyze EMI on the go, this device will streamline your workflow.
However, if your work demands extremely high-end lab instruments or if you only need a basic oscilloscope for simple tasks, this might be more than necessary. It’s designed to reduce confusion by integrating multiple functions into one unit, minimizing the need to carry separate devices.
As a practical tip, familiarize yourself with the touchscreen controls and the 12 auto measurements feature to speed up your diagnostic process. Rest assured, the FNIRSI device balances advanced capabilities with user-friendly operation, making complex automotive diagnostics less stressful and more accessible.
Handheld Dual Channel Automotive Oscilloscope
The Best Handheld Oscilloscope for Automotive Use, ideal for technicians and hobbyists needing versatile waveform analysis on the go.
.ap-btn{ transition:transform .15s ease, filter .15s ease; } .ap-btn:hover{ transform:translateY(-1px); filter:brightness(.95); }
This handheld dual channel oscilloscope from ZOYI combines an oscilloscope, digital multimeter, and signal generator into one compact device designed for automotive diagnostics. It helps users quickly identify and analyze various waveforms including pulse, circular, and noise signals, simplifying troubleshooting unknown electrical issues. The AUTO automatic recognition feature notably enhances measurement efficiency by adapting to complex waveform analysis.
In real-world use, this oscilloscope feels reliable and intuitive, offering a smooth experience whether you’re measuring resistance or generating test signals. Its portability and high-speed sampling modes make it easy to work on vehicles without sacrificing precision, saving valuable time and boosting confidence during diagnostics.
Key Advantages for Automotive Use
- Dual-channel oscilloscope with 50MHz bandwidth supports detailed waveform analysis.
- Built-in multimeter functionality covers resistance, capacitance, continuity, diodes, and current measurements.
- High-speed mode with up to 280MSa/s sampling rate for capturing fast transient signals.
- Signal generator outputs sine, square, and triangle waves, expanding testing capabilities.
- Compact, lightweight design (under 1 pound) for easy handheld use in tight automotive spaces.
Who Should Consider This Device
This oscilloscope is well-suited for automotive technicians, electronics hobbyists, and engineers who require a versatile, portable diagnostic tool that combines multiple functions in one. If you need reliable waveform analysis and multimeter features without carrying multiple devices, this model is a practical choice.
However, if your work demands ultra-high bandwidth or extremely specialized laboratory equipment, this device might not meet those advanced requirements. It’s designed primarily for automotive and general electronic troubleshooting rather than high-end lab research.
Using this oscilloscope removes the guesswork when diagnosing complex electrical faults, helping you pinpoint issues faster and more confidently. A practical tip is to familiarize yourself with the AUTO waveform recognition feature to maximize efficiency during tests.
Rest assured, ZOYI’s solid build quality and user-friendly interface reduce the stress of field diagnostics, making this oscilloscope a dependable companion for everyday automotive use.
Fnirsi 10 Mhz Portable Automotive Oscilloscope
The Best Handheld Oscilloscope for Automotive Use, perfect for mechanics and automotive technicians needing reliable diagnostics on the go.
.ap-btn{ transition:transform .15s ease, filter .15s ease; } .ap-btn:hover{ transform:translateY(-1px); filter:brightness(.95); }
The FNIRSI 10 MHz Portable Automotive Oscilloscope is a compact, handheld device designed to help automotive professionals diagnose electrical issues quickly and accurately. With a 10 MHz bandwidth and 48 MS/s sampling rate, it captures detailed signal data to troubleshoot vehicle electronics effectively. One standout feature is its built-in DDS signal generator, which outputs 13 waveform types to simulate different signals and enhance testing versatility.
Using this oscilloscope feels intuitive thanks to its clear 2.8-inch LCD display and one-key AUTO function that automatically optimizes measurement settings. Its portability and long-lasting battery make it a dependable tool for on-site repairs, saving time and boosting confidence in your diagnostics.
- 10 MHz bandwidth with 48 MS/s sampling rate for precise signal capture
- Built-in DDS signal generator supporting multiple waveform outputs
- Compact size (3.8″ x 2.68″ x 0.75″) and lightweight (under 1 pound) for easy handling
- Long-lasting 1000mAh battery with Type-C charging for convenience
- Clear 320×240 resolution LCD with infinite afterglow for detailed waveform analysis
Who Should Consider This Oscilloscope
This device is ideal for automotive technicians, mechanics, and electronics hobbyists who need a portable yet capable oscilloscope for vehicle diagnostics and signal analysis. If you value ease of use combined with essential features like a signal generator and automatic triggering, this unit fits well.
However, if your work requires bandwidth beyond 10 MHz or more advanced features found in bench oscilloscopes, you might want to look for a higher-spec model. The FNIRSI DSO-510 removes confusion by simplifying setup and automatically adjusting parameters, which can be especially helpful under time pressure.
When using it, take advantage of the one-key AUTO feature to quickly get accurate readings without manual tweaking. Rest assured, this oscilloscope provides reliable, clear results that help you diagnose automotive electrical issues with confidence and less hassle.
How To Choose The Right Handheld Oscilloscope For Automotive Use
Consider what measurements you need most often and how complex your diagnostics will be. Balance portability with functionality; more features often mean a larger device. Think about battery life and ease of use, especially for fieldwork. Prioritize models that fit your workflow rather than just chasing bandwidth or sampling rates.
Common Mistakes And Who Should Avoid Handheld Automotive Oscilloscopes
- Expecting a handheld unit to replace full benchtop oscilloscopes for advanced lab work.
- Buying high-bandwidth models without needing that level of detail, leading to unnecessary cost.
- Choosing devices without verifying compatibility with the signals or tests relevant to your vehicle models.
- Assuming all handheld scopes include advanced features like signal generators or spectrum analyzers.
- Those who rarely perform electrical diagnostics or prefer simple multimeters may find these devices overly complex.
Best Handheld Oscilloscope For Automotive Use: Frequently Asked Questions
What bandwidth is sufficient for most automotive diagnostics?
For typical automotive signals, bandwidths around 10 to 50 MHz cover most needs. Higher bandwidths are useful for specialized tasks but not necessary for routine diagnostics.
How important is the sampling rate in a handheld oscilloscope?
Sampling rate affects how accurately transient signals are captured. A rate of at least 2 MS/s is usually enough for automotive signals, but faster rates provide better detail for complex waveforms.
Are built-in signal generators necessary in these devices?
Signal generators add versatility but are not essential for basic diagnostics. They are helpful if you need to test or simulate signals frequently.
Can handheld oscilloscopes replace traditional multimeters for all measurements?
Handheld oscilloscopes excel at signal visualization but do not fully replace multimeters for simple voltage, current, or resistance measurements. Many models include multimeter functions, but the two tools serve different purposes.
How does battery life impact the usability of these scopes in the field?
Longer battery life allows uninterrupted use during extended diagnostics. Consider scopes with at least a few hours of runtime and efficient charging options for fieldwork.
Is screen size a critical factor for handheld oscilloscopes?
Larger screens improve readability but may reduce portability. Choose a size that balances comfort and convenience for your typical working environment.
Do these devices require frequent calibration or maintenance?
Most handheld oscilloscopes require minimal maintenance but should be calibrated periodically to ensure accuracy. Follow manufacturer guidelines for best results.
Final Thoughts On Selecting A Handheld Automotive Oscilloscope
Choosing a handheld oscilloscope for automotive use is about matching the tool to your diagnostic needs and work style. Understanding trade-offs between features, size, and price helps you avoid common pitfalls and find a device that feels right in your hands.
With thoughtful consideration, you can select a scope that supports your work reliably and efficiently. Confidence comes from knowing your choice suits your practical demands and technical expectations.
