Have you ever been stuck trying to figure out a tricky signal, only to find your oscilloscope too slow or confusing? It’s frustrating when your tools slow you down, especially when you need quick, clear results.
Picking the right mixed signal oscilloscope can change all that. It makes testing faster and more accurate, saving you time and stress every day. Whether you work on electronics projects or troubleshoot devices, having the right scope feels like having a trusted helper by your side.
In this article, you’ll find carefully chosen oscilloscopes that fit different needs and budgets. Keep reading to discover which model can make your work easier and more enjoyable.

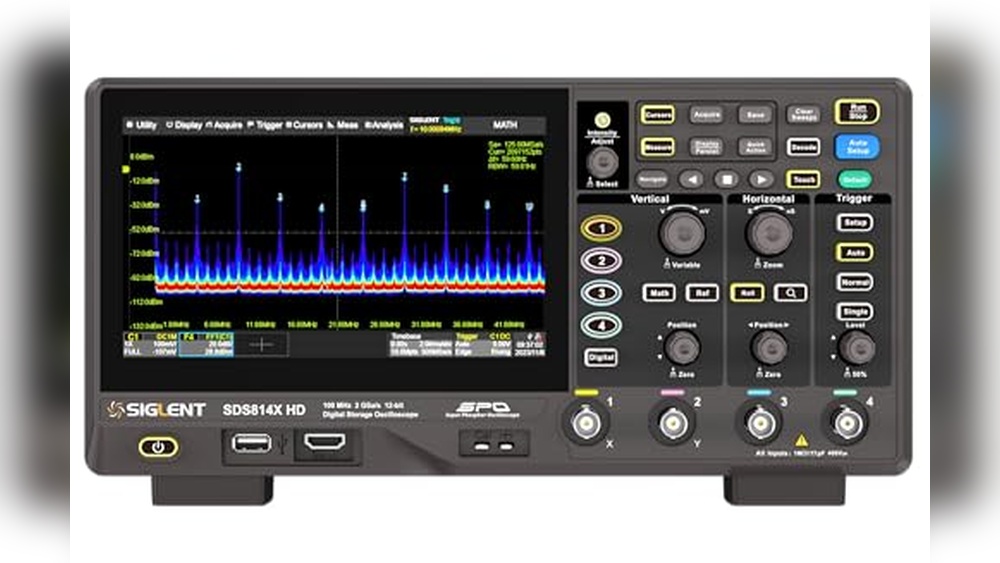

Siglent Sds814x Hd Mixed Signal Oscilloscope
The Siglent SDS814X HD -12bits Mixed Signal Oscilloscope is ideal for electronics professionals, engineers, and hobbyists who require precise and reliable waveform analysis. This oscilloscope is perfect for those working with complex digital and analog signals, offering a balance of high performance and ease of use, making it suitable for both advanced diagnostics and educational purposes.
Pros:
- 4 Channel inputs for versatile signal monitoring
- 100 MHz bandwidth suitable for a wide range of applications
- 12-bit high-definition resolution for accurate signal capture
- Compact and lightweight design (8.4 pounds) enhances portability
- Reliable brand and build quality from Siglent Technologies NA Inc.
Cons:
- Limited to 100 MHz bandwidth, which may not suit very high-frequency applications
- Display size and interface might be less advanced compared to premium models
The Siglent SDS814X HD provides a remarkable 12-bit resolution, significantly enhancing the precision of signal measurements compared to standard 8-bit oscilloscopes. This feature is critical for users needing detailed waveform analysis, such as in research or troubleshooting intricate circuits. The four input channels enable simultaneous monitoring of multiple signals, increasing efficiency during complex testing scenarios.
Designed with practical dimensions (Height: 5.19684 inches, Width: 12.28344 inches, Length: 5.94487 inches), this oscilloscope is portable enough to fit comfortably in various workspaces without compromising functionality. The trusted Siglent brand ensures durable construction and consistent performance, making this model a solid investment for professionals requiring dependable mixed signal analysis tools.
To buy this product, click here.
Fnirsi Dpos350p 4-in-1 Tablet Oscilloscope
The FNIRSI DPOS350P 4-in-1 Tablet Oscilloscope is ideal for electronics enthusiasts, engineers, and technicians who require a versatile and portable testing device. If you need a compact tool that combines multiple functions such as an oscilloscope, spectrum analyzer, frequency response analyzer, and DDS generator, this item is perfect for hands-on diagnostics and signal analysis in the field or lab.
Pros:
- High bandwidth of 350MHz for detailed signal analysis
- Large 7″ touch screen with digital phosphor display for clear visuals
- Multi-functional 4-in-1 design combining oscilloscope, spectrum analyzer, frequency response analyzer, and DDS generator
- Compact and handheld with dimensions 1.46 x 5.04 x 7.48 inches for portability
- Fast sampling rate of 1 GSa/s for accurate waveform capture
Cons:
- May have a learning curve for beginners unfamiliar with multi-functional oscilloscopes
- Battery life may be limited during extended field use
- Screen glare can be an issue in very bright environments
The FNIRSI DPOS350P features a robust 350MHz bandwidth and a 1 GSa/s sampling rate, allowing users to capture high-frequency signals with precision. Its 7-inch touch screen provides a user-friendly interface with digital phosphor technology, which enhances waveform visibility and detail. This makes troubleshooting and signal analysis more efficient and accurate for professionals.
Additionally, the device’s multi-functional nature brings great value by integrating a spectrum analyzer with a frequency response analyzer and a built-in DDS generator. This versatility means users don’t have to carry multiple instruments, saving both space and cost. The handheld design with compact dimensions ensures portability without compromising performance, making it a reliable tool for both lab and field applications.
To buy this product, click here.
Rigol Mso5074
The RIGOL MSO5074 70 MHz Mixed Signal Oscilloscope is ideal for professionals and enthusiasts in electronics design, testing, and troubleshooting. If you require a reliable, high-performance oscilloscope with multiple analog channels and advanced visualization capabilities, this instrument is perfect for engineers, educators, and technicians who demand precision and ease of use in their signal analysis tools.
Pros:
- Four analog channels allowing simultaneous multi-signal analysis
- UltraVision II high-speed technology for enhanced waveform clarity and detail
- Compact dimensions and manageable weight for easy placement and portability
- Brand reliability from Rigol, known for quality test equipment
- Intuitive user interface to streamline measurement and data interpretation
Cons:
- Limited to 70 MHz bandwidth, which may not suit very high-frequency applications
- Weight might be on the heavier side for portable use compared to smaller models
- Basic connectivity options may require additional accessories for remote operation
The RIGOL MSO5074 oscilloscope features a 70 MHz bandwidth with four analog channels, enabling users to capture and analyze complex signals efficiently. Its UltraVision II technology significantly enhances waveform detail by providing a high waveform capture rate and deep memory. This allows for accurate visualization of fast transient events and subtle signal anomalies, improving diagnostic capabilities during electronic testing and development.
Designed with a footprint of approximately 7.87 inches in height, 14.45 inches in width, and 5.12 inches in length, the oscilloscope fits comfortably on workbenches without sacrificing functionality. Weighing just over 7.7 pounds, it balances portability with robust build quality. The user-friendly interface simplifies complex measurements, making it accessible to both seasoned engineers and students. Overall, the RIGOL MSO5074 offers a powerful combination of performance, versatility, and ease of use for detailed mixed signal analysis.
To buy this product, click here.
Siglent Sds824x Hd
The Siglent SDS824X HD – Mixed Signal Oscilloscope is ideal for professionals and hobbyists who require precise and reliable signal analysis. Whether you are an electronics engineer, technician, or a researcher working on complex circuits, this oscilloscope provides the advanced features necessary to tackle detailed testing and troubleshooting.
Pros:
- Four channels allowing simultaneous multi-signal observation
- High bandwidth of 200 MHz for capturing fast signals
- Compact and lightweight design with dimensions of 5.25 x 6.0 x 12.3 inches and weight of 8.4 pounds
- Manufactured by Siglent Technologies NA Inc., known for quality and reliability
Cons:
- May be priced higher compared to entry-level oscilloscopes
- Learning curve for beginners due to advanced features
- Limited portability compared to handheld models
The Siglent SDS824X HD oscilloscope offers a robust set of features, including four channels that let users monitor multiple signals simultaneously, which is crucial for complex debugging tasks. Its 200 MHz bandwidth ensures that even high-frequency signals are accurately captured, providing clear and detailed waveform analysis. The device’s compact form factor and manageable weight make it suitable for both benchtop use and transportation between work sites.
Additionally, the oscilloscope’s build quality from Siglent Technologies guarantees durability and consistent performance. Its advanced mixed signal capabilities enable users to analyze both analog and digital signals in one device, enhancing efficiency. These features translate into improved productivity and more precise diagnostics for professionals who demand high performance in their testing equipment.
To buy this product, click here.
Siglent Technologies Sds1202x-e Digital Oscilloscope
The Siglent Technologies SDS1202X-E 200 MHz Digital Oscilloscope is ideal for engineers, technicians, and hobbyists who require a reliable and precise instrument for electronic signal analysis. Whether you’re working in a professional lab environment or engaging in advanced DIY electronics projects, this oscilloscope offers the functionality and performance to meet demanding measurement needs.
Pros:
- High bandwidth of 200 MHz suitable for a wide range of applications
- Two channels allow simultaneous signal analysis
- Compact and lightweight design (5.5 pounds) for easy portability
- Trusted Siglent brand known for quality and reliability
- Clear, user-friendly interface with precise measurement capabilities
Cons:
- Limited to two channels, which might restrict more complex multi-signal testing
- Grey color may show dirt or wear more noticeably over time
The Siglent SDS1202X-E oscilloscope features a bandwidth of 200 MHz, which ensures accurate capture of high-frequency signals essential for modern electronic diagnostics. Its dual-channel configuration allows users to compare and analyze two different waveforms simultaneously, enhancing troubleshooting efficiency. The device’s dimensions and weight make it conveniently portable without sacrificing performance, ideal for fieldwork or tight lab spaces.
Users benefit from the oscilloscope’s high-resolution display and intuitive controls, which simplify complex measurements and data interpretation. The robust build quality from Siglent Technologies guarantees durability and consistent performance, making it a dependable tool for both professional and educational purposes. Overall, the SDS1202X-E provides a balanced blend of power, ease-of-use, and accuracy.
To buy this product, click here.
Frequently Asked Questions
What Is A Mixed Signal Oscilloscope?
A mixed signal oscilloscope combines analog and digital signal analysis in one device. It helps test complex circuits easily.
Which Is Best For Beginners Among These Oscilloscopes?
The Siglent SDS814X HD is beginner-friendly with 4 channels and 100 MHz bandwidth. It offers clear, easy-to-use features.
How Does The Fnirsi Dpos350p Stand Out?
FNIRSI DPOS350P is a versatile 4-in-1 device with oscilloscope, spectrum analyzer, frequency response analyzer, and DDS generator.
What Makes Rigol Mso5074 A Reliable Choice?
RIGOL MSO5074 offers 70 MHz bandwidth, 4 analog channels, and UltraVision II tech for high-speed, accurate measurements.
Are Handheld Oscilloscopes Like The Fnirsi Dpos350p Practical?
Yes, handheld models like FNIRSI DPOS350P provide portability with powerful features and a 7” touch screen for fieldwork.
What Bandwidth Is Ideal For Mixed Signal Oscilloscopes?
A bandwidth between 100 MHz and 200 MHz suits most mixed signal applications, balancing speed and signal clarity.
Conclusion
Choosing the right mixed signal oscilloscope depends on your specific needs and budget. The models discussed offer various features like multiple channels, high bandwidth, and easy-to-use interfaces. Whether you need a handheld device or a benchtop option, there is a suitable choice available.
Keep in mind the importance of sample rate, screen size, and signal resolution when making your decision. Each oscilloscope in the list brings reliable performance for different tasks. Focus on what features matter most to you for accurate testing and analysis.
Taking time to compare these options will help you find the best fit. This ensures better results in your projects and experiments. With the right oscilloscope, you can capture and analyze signals with confidence and ease.
