Best Oscilloscope for Ham Radio: Top Picks for Precision and Performance

There’s nothing more frustrating than trying to troubleshoot your ham radio setup without the right tools. You might miss crucial signal details or spend hours guessing what’s wrong.

It can feel like an endless puzzle with no clear answers. But choosing the right oscilloscope changes everything. Suddenly, you can see signals clearly and fix issues faster. Your daily radio work becomes smoother and more enjoyable. Whether you’re a beginner or a seasoned ham, having a reliable oscilloscope saves time and reduces stress.

In this article, we’ll explore some of the best oscilloscopes designed to meet your ham radio needs. Keep reading to find the perfect tool that fits your budget and helps you get the most out of your radio hobby.

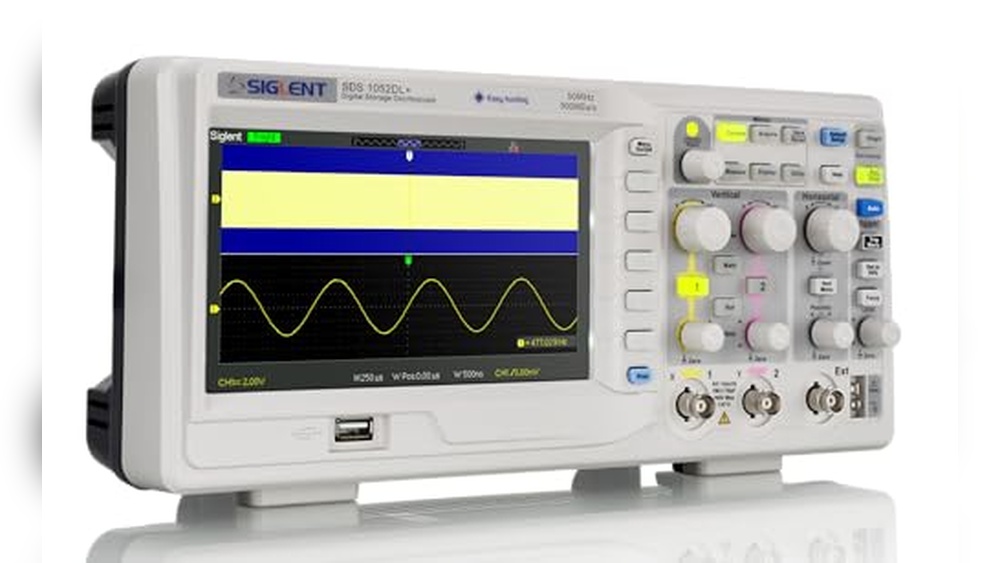

Siglent Technologies Sds1052dl+ Digital Storage Oscilloscope

The Siglent Technologies SDS1052DL+ 50 MHz Digital Storage Oscilloscope is ideal for electronics enthusiasts, students, and professionals who require a reliable and user-friendly device for measuring and analyzing electronic signals. Whether you are working on circuit design, troubleshooting, or educational projects, this oscilloscope offers the precision and features necessary to enhance your work.

Pros:

• 50 MHz bandwidth suitable for a wide range of electronic applications
• Compact and lightweight design with dimensions of 15.0 x 17.0 x 10.0 inches and weighing just 1.0 pound
• High-quality digital storage capabilities for accurate signal capture and analysis
• Easy-to-use interface perfect for beginners and professionals alike
• Reliable brand and manufacturer: Siglent

Cons:

• Limited bandwidth may not be suitable for very high-frequency applications
• Basic model lacking some advanced features found in higher-end oscilloscopes

The Siglent SDS1052DL+ offers a robust 50 MHz bandwidth which covers most standard electronic testing needs, making it a versatile tool for daily use. Its digital storage functionality allows users to capture and analyze transient signals efficiently, improving the accuracy of diagnostics and experimentation. The oscilloscope’s compact form factor and lightweight build make it highly portable, allowing users to easily transport it between workstations or classrooms.

In addition to its technical specifications, the user-friendly interface enhances the overall experience by simplifying complex operations, reducing the learning curve for new users. The combination of reliable performance, portability, and ease of use makes this oscilloscope a valuable investment for anyone involved in electronics, from hobbyists to experienced engineers.

To buy this product, click here.

Hantek Dso2c10 Digital Storage Oscilloscope

The Hantek DSO2C10 Digital Storage Oscilloscope is ideal for electronics enthusiasts, hobbyists, and professionals who require a reliable and versatile tool for signal analysis. If you need a compact yet powerful oscilloscope with high bandwidth and dual channels for precise measurement, this device is a perfect fit. It suits users looking for advanced features without sacrificing portability or ease of use.

Pros:

• 100MHz bandwidth supports a wide range of signal frequencies.
• Dual channel (2CH) allows simultaneous measurement of two signals.
• High sampling rate of 1GSa/s ensures accurate waveform capture.
• 8M memory depth for detailed data storage and analysis.
• Comes with a high voltage probe for safe and precise measurements.
• Compact dimensions and lightweight design make it portable and easy to handle.

Cons:

• May have a steeper learning curve for beginners unfamiliar with oscilloscopes.
• Limited to two channels, which might restrict complex multi-signal testing.
• Screen size could be larger for enhanced visibility in detailed analysis.

The Hantek DSO2C10 features a robust 100MHz bandwidth which is suitable for most general electronic testing and troubleshooting tasks. Its dual channels enable users to compare and analyze two different signals simultaneously, improving efficiency in diagnosing circuit behavior. The high sampling rate of 1GSa/s ensures that fast transient events are captured accurately, which is critical for high-speed electronics work.

Additionally, the oscilloscope’s 8M memory depth allows for extended data recording, enabling detailed waveform analysis without losing critical information. The included high voltage probe enhances safety and measurement precision, especially when working with higher voltage circuits. Despite its powerful features, the oscilloscope remains compact and lightweight, making it easy to transport and use in various environments, from labs to fieldwork.

To buy this product, click here.

Siglent Technologies Sds1202x-e Digital Oscilloscope

The Siglent Technologies SDS1202X-E 200 MHz Digital Oscilloscope is ideal for electronics enthusiasts, engineers, and technicians who require a reliable and precise instrument for testing and troubleshooting electronic circuits. Whether you are working in a professional lab environment or pursuing advanced DIY electronics projects, this oscilloscope offers the performance and features to meet your needs.

Pros:

• High bandwidth of 200 MHz for accurate signal analysis
• Two channels allowing simultaneous measurement of multiple signals
• Compact and lightweight design with dimensions of 17.0 x 15.0 x 10.0 inches and weighing just 5.5 pounds
• Produced by a reputable brand, Siglent Technologies, known for quality test equipment
• User-friendly interface with advanced digital features for enhanced measurement accuracy

Cons:

• May be more advanced than necessary for casual hobbyists
• Grey color might not appeal to all users
• Limited to two input channels which may restrict complex multi-signal analysis

The Siglent SDS1202X-E oscilloscope features a 200 MHz bandwidth which allows users to capture and analyze high-frequency signals with precision. Its dual-channel capability enables simultaneous observation of two different signal sources, making it versatile for various testing scenarios. The device’s compact size and relatively lightweight design make it easy to transport and fit into most workspaces without hassle.

Additionally, the oscilloscope is manufactured by Siglent Technologies, a trusted name in the industry, ensuring reliability and accuracy in measurements. The intuitive user interface and digital signal processing enhance user experience, allowing even complex waveforms to be interpreted with ease. These features translate to efficient troubleshooting and development processes for engineers and technicians alike.

To buy this product, click here.

Rigol Digital Oscilloscope Dho804

The RIGOL Digital Oscilloscope DHO804 is ideal for electronics professionals, engineers, and hobbyists who require a reliable and high-performance tool for signal analysis. If you need precise measurements with a high sample rate and multiple channels for complex testing scenarios, this oscilloscope is designed to meet your demands.

Pros:

• 70MHz frequency band allows for detailed signal analysis.
• 12-bit vertical resolution ensures high accuracy and clear waveform display.
• Maximum 1.25 GSa/s sample rate captures fast transient signals effectively.
• 1000,000 wfms/s waveform capture rate enables quick and efficient data acquisition.
• 4 analog channels provide flexibility for multi-signal testing.
• Compact and lightweight design with dimensions 6.37 x 3.05 x 10.45 inches and weight 3.92 pounds, making it portable.

Cons:

• Limited to a 70MHz frequency band, which may not be sufficient for very high-frequency applications.
• The red color may not appeal to all users who prefer a more neutral device appearance.

The RIGOL DHO804 Digital Oscilloscope offers a robust set of features tailored for detailed electronic signal analysis. Its 12-bit vertical resolution enhances the clarity of waveforms, making it easier to identify subtle signal anomalies. Users benefit from a high sample rate of 1.25 GSa/s, which is crucial for capturing rapid signal changes and ensuring accurate data representation.

With 4 analog channels, this oscilloscope allows simultaneous monitoring of multiple signals, increasing efficiency during complex diagnostics. The impressive waveform capture rate of 1,000,000 wfms/s ensures that transient events are not missed, providing comprehensive insight into signal behaviors. Its compact size and manageable weight make it suitable for both lab and field use, catering to professionals who value portability without sacrificing performance.

To buy this product, click here.

Fnirsi Dpos350p 4-in-1 Tablet Oscilloscope

The FNIRSI DPOS350P 4-in-1 Tablet Oscilloscope is ideal for electronics enthusiasts, engineers, and technicians who require a versatile and portable diagnostic tool. If you need a compact device that combines multiple functions like oscilloscope, spectrum analyzer, frequency response analyzer, and DDS generator, this handheld unit is perfect for on-the-go troubleshooting and detailed signal analysis. Its user-friendly design also suits students and hobbyists aiming to deepen their understanding of electronic signals.

Pros:

• Compact and lightweight with dimensions of 7.48 inches length, 5.04 inches width, and 1.46 inches height, making it highly portable.
• 4-in-1 functionality: combines oscilloscope, spectrum analyzer, frequency response analyzer, and DDS generator in one device.
• 350MHz bandwidth oscilloscope capable of capturing high-frequency signals accurately.
• 7″ touch screen with digital phosphor display for intuitive navigation and clear signal visualization.
• 1 GSa/s sampling rate with 2 channels for detailed waveform analysis.

Cons:

• The device may have a learning curve for beginners unfamiliar with advanced signal analysis tools.
• Battery life could be limited during extended use in fieldwork.
• Screen size, while sufficient, might be small for users accustomed to larger desktop oscilloscopes.

The FNIRSI DPOS350P stands out due to its integration of multiple measurement tools in a single handheld device. This eliminates the need for carrying separate equipment, which benefits professionals needing quick diagnostics in tight spaces or on-site environments. The impressive 350MHz bandwidth and 1 GSa/s sampling rate ensure that users can capture and analyze fast signals with precision, making it suitable for complex electronics troubleshooting.

Additionally, the 7-inch touch screen enhances user interaction by offering a responsive and clear display, simplifying waveform inspection and parameter adjustments. Its sleek design and compact size make it easy to handle and transport without sacrificing functionality. Overall, this device offers excellent value for users who demand performance and versatility in a portable form factor.

To buy this product, click here.

Frequently Asked Questions

What Bandwidth Is Ideal For Ham Radio Oscilloscopes?

A bandwidth of 50 MHz to 350 MHz suits ham radio needs. It captures most radio signals clearly. For example, the Siglent SDS1052DL+ offers 50 MHz, while FNIRSI DPOS350P provides 350 MHz bandwidth.

How Many Channels Should A Ham Radio Oscilloscope Have?

Two to four channels are best for ham radio use. This allows simultaneous signal monitoring and comparison. Models like Rigol DHO804 offer 4 channels, ideal for complex signal analysis.

What Sample Rate Is Necessary For Ham Radio Oscilloscopes?

A minimum of 1 GSa/s sample rate is recommended. It ensures accurate signal representation and detail. The Hantek DSO2C10 and FNIRSI DPOS350P both provide 1 GSa/s rates.

Are Handheld Oscilloscopes Suitable For Ham Radio Operators?

Yes, handheld oscilloscopes like FNIRSI DPOS350P offer portability and versatility. They combine oscilloscope, spectrum analyzer, and DDS generator in one device, perfect for fieldwork.

How Important Is Memory Depth In Ham Radio Oscilloscopes?

Memory depth affects waveform capture duration and detail. At least 8M memory, like in Hantek DSO2C10, allows long signal recording and thorough analysis.

Conclusion

Choosing the best oscilloscope for ham radio depends on your specific needs and budget. Each model offers unique features like different bandwidths, sample rates, and channel numbers. For beginners, simpler models with easy controls work well. Advanced users might prefer oscilloscopes with higher bandwidth and multiple channels for detailed signal analysis.

Portability can also be important if you work outside your home station. Remember to consider memory depth and display quality for clear, accurate readings. The models discussed provide options from entry-level to professional-grade tools. Take your time to compare and pick one that fits your radio projects.

A good oscilloscope helps you understand signals better and improves your ham radio experience. Keep these factors in mind to make a smart choice that meets your goals.
