Have you ever been stuck trying to fix a radio, only to feel lost without the right tools? It’s frustrating when you can’t see what’s really going on inside the circuits.
A poor oscilloscope can make troubleshooting slow and confusing. But choosing the right oscilloscope changes everything. Suddenly, you can spot problems quickly and work with confidence. It makes your daily repairs smoother and more satisfying. Whether you’re a hobbyist or a professional, having a reliable oscilloscope saves you time and stress.
In this article, we’ll explore some of the best oscilloscopes for radio repair. Each one is designed to help you understand your circuits better and fix issues faster. Keep reading to find the perfect tool that fits your needs and makes your repair work easier.

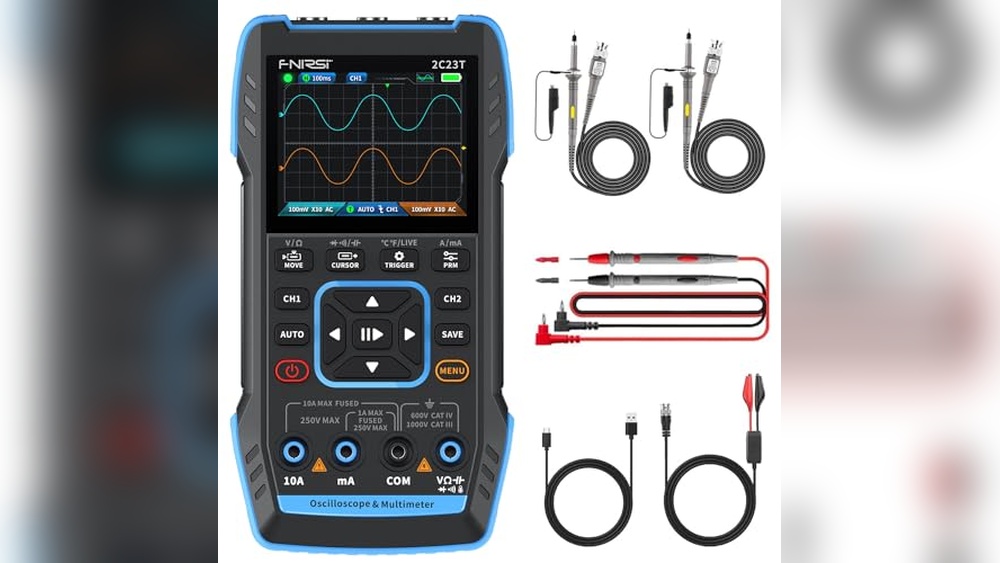

Fnirsi 3 In1 Oscilloscope/multimeter/dds Signal Generator
The FNIRSI 3 in1 Oscilloscope/Multimeter/DDS Signal Generator with the Upgraded Model 2P6100 Probe is ideal for electronics enthusiasts, engineers, and technicians who need a versatile and compact diagnostic tool. If you require a device that combines multiple measurement functions in one, such as voltage, current, capacitance, and resistance testing, this product is perfect for you. It suits professionals and hobbyists who value portability without compromising on performance.
Pros:
- Compact 3-in-1 design integrating oscilloscope, multimeter, and DDS signal generator.
- 10MHz bandwidth and 50MSa/s sampling rate ensure precise signal analysis.
- Comes with upgraded 2P6100 probes for enhanced measurement accuracy.
- High resolution with 10000 counts for detailed readings.
- Measures multiple parameters including voltage, current, capacitor, and resistor.
- Lightweight at approximately 1.57 pounds, making it highly portable.
Cons:
- Limited to a 10MHz bandwidth, which may not suit very high-frequency applications.
- Learning curve for beginners due to multifunctional features.
The FNIRSI 3 in1 device offers a powerful combination of an oscilloscope, multimeter, and DDS signal generator in one compact unit. Its dual-channel capability allows users to analyze multiple signals simultaneously, enhancing diagnostic efficiency. The upgraded 2P6100 probes improve accuracy and reliability, making it easier to obtain precise measurements across different electrical parameters. The lightweight and portable design make it convenient for fieldwork or workshops where space and mobility are crucial.
With a bandwidth of 10MHz and a sampling rate of 50MSa/s, this instrument delivers detailed waveform analysis suitable for most common electronic troubleshooting tasks. The high 10000 counts display ensures clarity and precision in readings, whether measuring voltage, current, capacitance, or resistance. Overall, this multifunctional tool is a cost-effective solution for professionals and hobbyists seeking a versatile, portable, and efficient device to handle diverse electronic measurement needs.
To buy this product, click here.
Siglent Technologies Sds1052dl+ Digital Storage Oscilloscope
The Siglent Technologies SDS1052DL+ 50 MHz Digital Storage Oscilloscope is ideal for electronics enthusiasts, students, and professionals who require a reliable and user-friendly tool for testing and troubleshooting electronic circuits. Whether you are a hobbyist working on small projects or an engineer needing precise waveform analysis, this oscilloscope offers a great balance of performance and affordability.
Pros:
- Compact and lightweight design for easy portability
- Clear and sharp display for accurate waveform visualization
- 50 MHz bandwidth suitable for a wide range of applications
- User-friendly interface ideal for beginners and professionals
- Reliable brand reputation with excellent customer support
Cons:
- Limited to 50 MHz bandwidth, not suitable for very high-frequency signals
- Basic memory depth compared to higher-end models
The Siglent SDS1052DL+ features a compact design measuring 15 inches in height, 17 inches in width, and 10 inches in length, weighing just 1 pound. This makes it easy to transport and fit into any workspace without hassle. With a bandwidth of 50 MHz, it is well-equipped to handle a variety of signal types commonly encountered in educational settings and general electronic troubleshooting. The digital storage capability allows users to capture and analyze waveforms with ease, enhancing the diagnostic process.
This oscilloscope also boasts an intuitive interface that simplifies operation, even for users new to oscilloscope technology. The clear and bright display ensures that waveforms are easily interpreted, reducing the chance of errors during analysis. Overall, the Siglent Technologies SDS1052DL+ delivers excellent value by combining essential features with a trusted brand name, making it a smart choice for users seeking dependable performance without excessive complexity.
To buy this product, click here.
Fnirsi Dpos350p 4-in-1 Tablet Oscilloscope
The FNIRSI DPOS350P 4-in-1 Tablet Oscilloscope is ideal for electronics enthusiasts, professional technicians, and engineers who require a versatile and portable diagnostic tool. If you need a multifunctional device combining an oscilloscope, spectrum analyzer, frequency response analyzer, and DDS generator, this handheld instrument is designed for you. Its compact size and touchscreen interface make it perfect for fieldwork and lab environments alike.
Pros:
- High bandwidth of 350MHz allowing detailed signal analysis.
- Multifunctional with integrated spectrum analyzer and frequency response analyzer.
- Compact and lightweight design with dimensions of 1.46 x 5.04 x 7.48 inches, ideal for portability.
- Large 7″ touch screen with digital phosphor display for clear visualization.
- Supports 1 GSa/s sampling rate for accurate waveform capture.
- User-friendly interface suitable for both beginners and professionals.
Cons:
- Battery life may be limited during extended field use.
- Learning curve for users unfamiliar with multifunctional oscilloscopes.
- Screen size, while large for handheld devices, may be small for detailed analysis compared to desktop models.
The FNIRSI DPOS350P stands out due to its impressive combination of features packed into a handheld tablet form factor. The device’s ability to perform as an oscilloscope, spectrum analyzer, frequency response analyzer, and DDS generator makes it incredibly versatile. This versatility benefits users by reducing the need to carry multiple instruments, streamlining diagnostic and testing processes. The 7-inch touchscreen enhances usability by providing intuitive control and clear signal visualization, which is essential for precise troubleshooting and analysis.
Additionally, the device’s high bandwidth of 350MHz and a sampling rate of 1 GSa/s ensure accurate and detailed signal capture, which is critical for advanced electronics work. Its compact dimensions and lightweight design further enhance portability, making it a reliable companion for on-site repairs and laboratory tasks. While it may require some familiarization for new users, the FNIRSI DPOS350P’s comprehensive functionality and ease of use make it a valuable tool for both beginners and seasoned professionals in the electronics field.
To buy this product, click here.
Fnirsi 2c53t Handheld Oscilloscope
The FNIRSI 2C53T Upgraded Handheld Oscilloscope is ideal for electronics enthusiasts, technicians, and engineers who require a versatile and portable testing device. This product is perfect for those who need a combination of an oscilloscope, multimeter, and DDS generator in one compact tool, making it suitable for fieldwork, lab use, and educational purposes.
Pros:
- 50MHz Bandwidth for detailed signal analysis
- 3IN1 functionality: oscilloscope, multimeter, and DDS generator
- High sampling rate of 250MS/s for accurate readings
- 19999 counts for precise measurement
- Tests voltage, current, capacitor, resistor, and diode
- Compact and lightweight design for portability
Cons:
- Limited to 50MHz bandwidth, which may not suit advanced high-frequency applications
- Screen size might be small for some users
- Learning curve for beginners unfamiliar with multifunction devices
The FNIRSI 2C53T features a robust 50MHz bandwidth that allows users to accurately observe and analyze electrical signals. Its 250MS/s sampling rate ensures that even fast transient signals are captured effectively. The device integrates a digital oscilloscope, multimeter, and DDS generator into one, providing comprehensive testing capabilities without the need for multiple instruments.
With its ability to measure voltage, current, capacitance, resistance, and diode functionality, the handheld oscilloscope offers versatile diagnostics for a wide range of electronic components. Its compact dimensions and lightweight design make it easy to carry around, ideal for professionals who work on-site or in tight spaces. Overall, the FNIRSI 2C53T delivers convenience, precision, and multifunctionality in a single portable device.
To buy this product, click here.
Siglent Technologies Sds1202x-e Digital Oscilloscope
The Siglent Technologies SDS1202X-E 200 MHz Digital Oscilloscope is ideal for electronics enthusiasts, engineers, and technicians who require a reliable and precise tool for signal analysis. This oscilloscope suits those working in research and development, education, or repair environments where accurate waveform observation and diagnostics are essential. Whether you are a hobbyist or a professional, this device provides the performance needed for detailed electronic testing.
Pros:
- High bandwidth of 200 MHz supports a wide range of signal frequencies
- Two channels allow simultaneous observation of multiple signals
- Compact and lightweight design (17.0 x 15.0 x 10.0 inches, 5.5 pounds) for easy portability
- Manufactured by Siglent Technologies, a trusted brand in test equipment
- User-friendly interface with clear grey color scheme for better visibility
Cons:
- Limited to two channels, which may not suffice for complex multi-signal analysis
- Size might be larger compared to some ultra-compact oscilloscopes
- May require some learning curve for beginners new to digital oscilloscopes
The SDS1202X-E model from Siglent offers a robust 200 MHz bandwidth, ensuring precise capture of high-frequency waveforms essential for detailed electronic signal analysis. Its dual-channel capability enables users to monitor two signals simultaneously, enhancing troubleshooting and comparative studies. The oscilloscope’s dimensions and weight make it portable enough for fieldwork while maintaining a stable and reliable build.
Equipped with advanced features and a user-friendly interface, this device caters well to professionals and students alike. The clear display and intuitive controls help reduce user error and improve efficiency in measurements. By choosing the Siglent Technologies SDS1202X-E, users benefit from a balance of performance, reliability, and ease of use in a compact, grey-colored package.
To buy this product, click here.
Frequently Asked Questions
What Is The Best Oscilloscope For Radio Repair?
The FNIRSI 3 in1 Oscilloscope offers great versatility for radio repair. It combines oscilloscope, multimeter, and DDS signal generator features. This model supports 10MHz bandwidth and 50MSa/s sampling rate, making it ideal for detailed radio diagnostics and repairs.
How Does Bandwidth Affect Oscilloscope Performance?
Bandwidth determines the oscilloscope’s ability to capture signal frequencies accurately. Higher bandwidth like 50MHz or 200MHz captures more detail. For radio repair, 50MHz to 200MHz bandwidth ensures clear signal analysis and precise troubleshooting.
Are Handheld Oscilloscopes Effective For Radio Repair?
Yes, handheld oscilloscopes like FNIRSI DPOS350P are effective. They offer portability with features like 350MHz bandwidth and touch screens. This makes them convenient for fieldwork and detailed radio signal analysis.
What Features Matter Most In A Radio Repair Oscilloscope?
Key features include bandwidth (50-200MHz), sampling rate (50MSa/s+), and multi-functionality. Models with built-in multimeter and signal generators add value. Clear display and user-friendly controls enhance repair efficiency.
Can Digital Storage Oscilloscopes Improve Radio Diagnostics?
Absolutely. Digital storage oscilloscopes like Siglent SDS1052DL+ store waveforms for detailed analysis. This helps identify intermittent faults and measure complex signals in radio repair.
Is The Fnirsi 2c53t Suitable For Beginners?
Yes, the FNIRSI 2C53T is beginner-friendly. It has a 50MHz bandwidth and easy-to-use interface. Its 3-in-1 functions support learning and practical radio repair tasks effectively.
Conclusion
Choosing the right oscilloscope can make radio repair easier and more precise. Devices like the FNIRSI 3 in1 and Siglent SDS1052DL+ offer useful features for beginners and experts alike. Consider bandwidth, sampling rate, and additional tools like multimeters or signal generators.
A good oscilloscope helps find faults faster and saves time. Portable models are great for fieldwork, while desktop versions suit detailed tasks. Think about what features match your repair needs and budget. With the right tool, radio repair becomes less frustrating and more efficient.
Take your time to pick the best oscilloscope, and your work will improve greatly. This investment pays off with better results and less guesswork.
