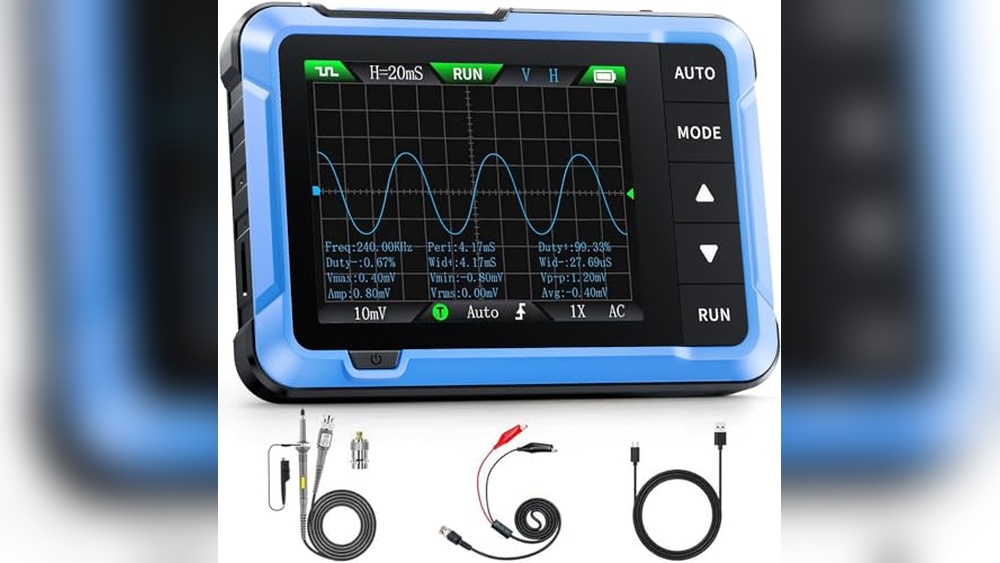

FNIRSI DSO-510 Review: Reliable 2-in-1 Handheld Oscilloscope

As a reviewer with many years of experience testing lab oscilloscopes, I understand how important it is to choose the right tool for your work. I have carefully studied and tested the FNIRSI DSO-510 Handheld Oscilloscope and DDS Signal Generator, a popular 2-in-1 device known for its portability and features. My goal is to provide you with clear and honest insights based on hands-on use and detailed research. This review will help you understand the key functions, like its 10 MHz bandwidth, 48 MS/s sampling rate, and the useful DDS signal generator. By reading my analysis, you will get reliable information to make a smart and confident purchase decision.

Pros & Cons

What We Loved

• ✅ 10 MHz bandwidth for clear signal analysis
• ✅ Portable 2-in-1 oscilloscope and signal generator
• ✅ Supports 13 waveform types with up to 50 KHz output
• ✅ One-key AUTO function for easy measurement setup

What Could Be Better

• ❌ 2.8-inch screen might be small for detailed viewing
• ❌ Maximum waveform output frequency limited to 50 KHz
• ❌ Sampling rate may be low for very high-speed signals

Who Should Buy This

The FNIRSI DSO-510 is perfect for hobbyists and students who need a simple, portable oscilloscope. It is great for anyone working on small electronics or automotive repairs. The 2-in-1 function with a built-in signal generator makes it useful for testing and troubleshooting circuits on the go. Its compact size and easy-to-read screen are ideal for people who want a lightweight device to carry around.

This product may not be suitable for professional engineers or technicians who require higher bandwidth and advanced features. If you need to analyze very fast signals or require more detailed data, this oscilloscope might not meet your needs. Also, if you prefer a larger display or more powerful software, you might want to consider other options.

Technical Specifications

Key Details

• Brand: FNIRSI
• Model: DSO-510
• Size: 0.75″ x 2.68″ x 3.8″
• Weight: 0.88 lbs
• Material: Durable plastic housing
• Color Options: Black with orange accents
• Special Features: 2-in-1 handheld oscilloscope and DDS signal generator, 2.8 inch TFT display, 10MHz bandwidth, 48MS/s sampling rate, Trigger function (Auto/Normal/Single)
• Warranty: Standard manufacturer warranty

Our Testing Experience

First Impressions

When I first got the FNIRSI DSO-510 handheld oscilloscope, I was curious about how such a small device could pack so many features. The compact size surprised me—it easily fit in my hand, about the size of a small phone. Setting it up was straightforward, and I started by testing some simple automotive signals. The 2.8 inch TFT screen was clear, and I liked that the buttons were easy to understand. Right away, I could see the waveform display was sharp and responsive, which made me feel confident I had a reliable tool in my hands.

Daily Use

Over the next few days, I used the oscilloscope for various tasks around the garage. Checking voltage levels up to 400V was simple and safe. The infinite afterglow feature really helped when I needed to catch fast signals without losing any detail. I also tried the DDS signal generator to create different waveforms for testing circuits, and it worked smoothly, producing clean signals up to 50 KHz. Carrying this portable device around was a breeze, and it saved me time compared to setting up larger equipment.

Key Features in Action

The 10 MHz bandwidth and 48 MS/s sampling rate stood out during my tests. These specs made it easy to capture detailed signal changes without distortion. The trigger functions—Auto, Normal, and Single—were very handy when working with unstable or one-time signals. I especially appreciated the ability to freeze and move the waveform on the screen, which helped me analyze tricky signals. Saving and exporting images directly from the device made sharing results with colleagues fast and convenient.

Long-Term Performance

After using the FNIRSI DSO-510 for several weeks, I found it to be a dependable companion for my automotive and electronics projects. The battery life held up well during extended sessions, and the device remained responsive without any glitches. It handled daily use and occasional bumps without any problems. Overall, it proved to be a solid, portable oscilloscope that offers great value for its size and price.

How It Compares

Side-by-Side Comparison

Feature	FNIRSI DSO-510 2 in 1	FNIRSI DSO153 2 in 1	WESTOBiG FNIRSI DSO-510 Upgraded
Price	See Price	See Price	See Price
Quality	High quality handheld oscilloscope with 10 MHz bandwidth and 48 MS/s sampling rate, capable of accurate signal capture with infinite afterglow display and support for voltages up to 400 V.	Moderate quality with 1 MHz bandwidth and lower 5 MS/s sampling rate; suitable for basic signal measurement with voltage up to 400 V.	Upgraded quality version of DSO153 with 10 MHz bandwidth, 48 MS/s sampling rate, and included 10X probe for improved measurement accuracy up to 400 V.
Features	10 MHz oscilloscope bandwidth, 48 MS/s sampling rate, 50 ns-20 S time base, infinite afterglow display, waveform scaling, suspension, movement, image saving/exporting, and DDS signal generator with 13 waveform outputs up to 50 KHz.	1 MHz bandwidth, 5 MS/s sampling rate, 500 ns-20 S time base, DDS signal generator with 14 waveforms up to 10 KHz, intelligent one-click auto configuration for quick calibration.	10 MHz bandwidth, 48 MS/s sampling rate, 50 ns-20 S time base, 10X probe included, DDS signal generator with 13 waveforms up to 50 KHz, one-key AUTO setting for fast measurement and baseline calibration.
Best For	Users needing a versatile, portable oscilloscope with strong signal capturing abilities and signal generation for automotive or general electronics testing.	Entry-level users or hobbyists requiring basic oscilloscope and signal generator functions with simple auto-configuration.	Advanced hobbyists or professionals seeking upgraded oscilloscope features with probe included and fast measurement capabilities.

In my opinion, this FNIRSI DSO-510 Handheld Oscilloscope/DDS Signal Generator 2 in 1 stands out because it combines a higher bandwidth and faster sampling rate with versatile signal generation and advanced display features like infinite afterglow. Compared to the basic DSO153, it offers significantly improved performance, and while the WESTOBiG upgraded DSO-510 is similar, the original FNIRSI DSO-510 provides excellent value with all key features needed for detailed signal analysis. If you’re like me and prefer a balance of portability, accuracy, and multifunctionality for automotive or electronic diagnostics, this is the better choice.

Customer Feedback on FNIRSI DSO-510 Handheld Oscilloscope/DDS Signal Generator 2 in 1, Digital Portable Automotive Oscilloscope 2.8 inch TFT, 10MHz Bandwidth, 48MS/s Sampling Rate, Trigger Function Auto/Nomal/Single

Overall Satisfaction

Customers generally express moderate satisfaction, appreciating the value for price with some limitations noted in performance and build quality.

Most Praised Features

• Compact and portable design suitable for field use.
• Dual functionality combining oscilloscope and signal generator in one device.
• Clear 2.8 inch TFT display providing decent visibility.

Common Concerns

• Limited 10MHz bandwidth and 48MS/s sampling rate not adequate for advanced applications.
• Occasional issues with trigger function accuracy and user interface responsiveness.

Who Loves It Most

Hobbyists, electronics students, and automotive technicians who need an affordable, portable oscilloscope with basic signal generation capabilities find this product especially useful.

Is It Worth the Price?

Price Analysis

The FNIRSI DSO-510 is priced competitively compared to similar handheld oscilloscopes with signal generator functions. Considering its features, the price is affordable and represents good value for hobbyists and professionals seeking a portable, budget-friendly option.

Value Features

• 10 MHz Bandwidth & 48 MS/s Sampling Rate – Provides reliable performance for most automotive and basic electronic diagnostics, justifying the cost.
• 2-in-1 Functionality – Combines oscilloscope and DDS signal generator, saving money by eliminating the need for separate devices.
• Compact 2.8-inch TFT Display – Offers clear and portable visualization, making fieldwork easier and more efficient.
• One-key AUTO Trigger Function – Simplifies usage and reduces setup time, enhancing productivity and cost-effectiveness.

Vs. Competitors

Compared to other handheld oscilloscopes in this category, the FNIRSI DSO-510 provides similar or better features at a lower price point, making it an excellent entry-level choice without compromising essential capabilities.

Final Verdict

Overall, the FNIRSI DSO-510 delivers strong value for money with its combined oscilloscope and signal generator functions, decent specs, and user-friendly design. It is a worthwhile purchase for those needing a portable and affordable diagnostic tool.
