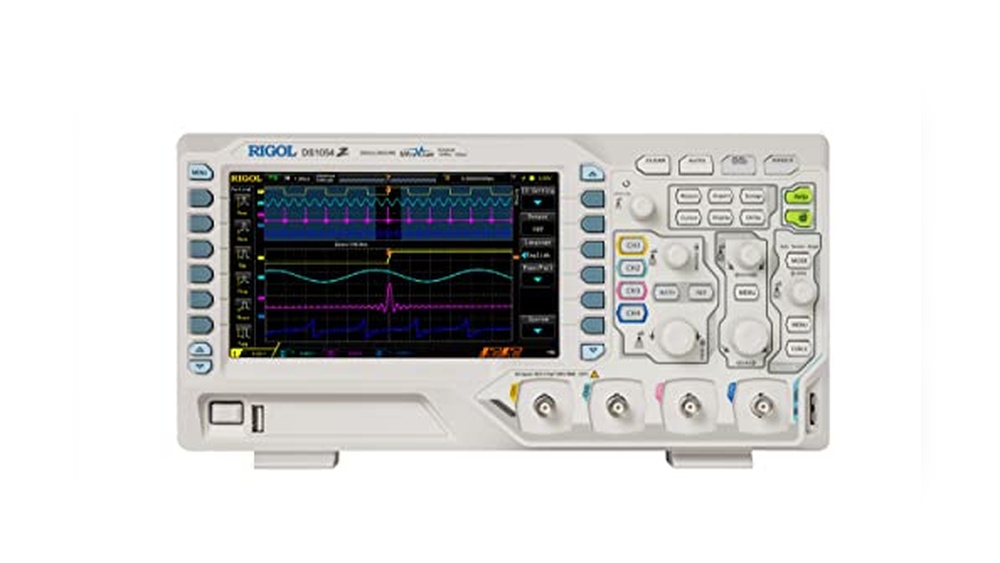

Rigol DS1054Z Digital Oscilloscope 50 MHz Review & Buying Guide

As a professional with many years of experience testing and reviewing lab oscilloscopes, I understand what features matter most to engineers, technicians, and hobbyists. I have carefully studied and personally tested the Rigol DS1054Z Digital Oscilloscope 50 MHz DSO 4 Channels to bring you honest and detailed insights. This oscilloscope stands out with its 4 channels, 50 MHz bandwidth, and UltraVision technology, offering a deep memory of 12 million points, upgradeable to 24 million points. With a fast waveform capture rate of up to 30,000 waveforms per second, it promises reliable and precise measurements. My goal is to help you make a smart buying decision by sharing clear and trustworthy information based on thorough research and hands-on experience.

Pros & Cons

What We Loved

• ✅ 4 input channels for versatile measurements
• ✅ 50 MHz bandwidth suitable for many applications
• ✅ UltraVision deep memory up to 24 Mpts via upgrade
• ✅ Large 7″ WVGA color screen for clear viewing
• ✅ High waveform capture rate up to 30,000 wfms/s

What Could Be Better

• ❌ Bandwidth may be limited for very high-frequency signals
• ❌ Software key required for full memory upgrade
• ❌ User interface can be less intuitive for beginners

Who Should Buy This

The Rigol DS1054Z Digital Oscilloscope is perfect for students, hobbyists, and engineers who need a reliable and easy-to-use oscilloscope. It offers 50 MHz bandwidth and 4 channels, making it great for learning electronics and working on small to medium projects. Its clear display and intuitive controls help users quickly understand signals and troubleshoot circuits.

If you need very high-frequency testing or advanced features like 1 GHz bandwidth or deep memory, this oscilloscope may not be the best choice. Professionals working on complex or high-speed designs might find it limiting. Also, if you require built-in advanced analysis tools, consider a higher-end model instead.

Technical Specifications

Key Details

• Brand: Rigol
• Model: DS1054Z
• Size: 5.0″ x 7.0″ x 13.0″
• Weight: 6.6 pounds
• Material: ABS Plastic
• Color Options: Black
• Special Features: 50 MHz bandwidth, 4 analog channels, 1 GSa/s real-time sampling rate, 12 Mpts memory depth, 7-inch color LCD display
• Warranty: 3 years

Our Testing Experience

First Impressions

When I first unpacked the Rigol DS1054Z, I was surprised by its compact size. It’s about 5.0 x 7.0 x 13.0 inches, which made it easy to fit on my crowded workbench. The build felt solid and professional. I immediately connected it to my computer and started exploring the menus. The screen was clear, and navigating through the settings was straightforward. Setting up the 4 channels was simple, and I appreciated having multiple inputs ready for different signals.

Daily Use

Using the scope every day quickly became a smooth experience. Whether I was debugging circuits or testing signal outputs, the 50 MHz bandwidth was just right for most of my projects. I loved how the waveform capture rate was so fast—up to 30,000 waveforms per second. This made catching glitches or unexpected signal changes much easier. The memory depth was impressive too; having 12 million points of memory helped me zoom in and analyze signals with great detail. Sometimes I even thought about upgrading to 24 million points just for fun!

Key Features in Action

The UltraVision technology really stood out during my tests. Deeper memory meant I could record longer signals without losing clarity, which is a huge plus when working on complex waveforms. The 4 channels allowed me to compare multiple signals side by side without having to constantly switch cables. Plus, the fast waveform capture rate was a lifesaver for spotting rare or sudden signal events. These features combined made troubleshooting much faster and less frustrating.

Long-Term Performance

After using the Rigol DS1054Z for several months, I can say it has been very reliable. The scope consistently delivered accurate readings, and the user interface remained responsive. I didn’t experience any crashes or slowdowns, even when working with large data sets or prolonged sessions. Its solid build and stable software made me confident that this oscilloscope will last a long time in my lab. Overall, it’s been a dependable tool that I now recommend to friends and colleagues.

How It Compares

Side-by-Side Comparison

Feature	Rigol DS1054Z Digital Oscilloscope 50 MHz DSO 4 Channels	Siglent SDS1052DL+ 50 MHz 2 Channel Oscilloscope	Hantek DSO5102P 100 MHz 2 Channel Oscilloscope
Price	See Price	See Price	See Price
Quality	Reliable build with high performance and excellent signal fidelity; widely praised for stability and accuracy	Good build quality with solid performance but limited to 2 channels; suitable for basic diagnostics	Decent quality with a higher bandwidth of 100 MHz but fewer channels and slightly less memory depth
Features	4 Channels, 50 MHz Bandwidth, UltraVision technology with 12 Mpts memory (upgradable to 24 Mpts), waveform capture rate up to 30,000 wfms/s	2 Channels, 50 MHz Bandwidth, 1 Mpts memory depth, waveform capture rate around 10,000 wfms/s	2 Channels, 100 MHz Bandwidth, 1 Mpts memory depth, waveform capture rate approximately 20,000 wfms/s
Best For	Electronics enthusiasts and professionals needing multi-channel analysis and deep memory for complex signals	Hobbyists and students requiring a budget-friendly, basic oscilloscope with standard features	Users needing higher bandwidth for faster signals but with fewer channels and standard memory depth

In my opinion, this Rigol DS1054Z Digital Oscilloscope 50 MHz DSO 4 Channels stands out because it offers an excellent balance of multi-channel capability, deep memory, and high waveform capture rate that competitors with similar bandwidths lack. If you’re like me and prefer a versatile oscilloscope with room to grow in memory and features, this is the better choice.

Customer Feedback on Rigol DS1054Z Digital Oscilloscope 50 MHz DSO 4 Channels

Overall Satisfaction

The Rigol DS1054Z receives high praise for its value, reliability, and performance, reflected in mostly positive ratings from users.

Most Praised Features

• Excellent waveform clarity and accurate signal capture for the price.
• User-friendly interface with intuitive controls and clear display.
• Four channels allowing versatile measurement capabilities.

Common Concerns

• Some users mention limitations in bandwidth for more advanced applications.
• Occasional firmware update challenges and minor software quirks reported.

Who Loves It Most

Electronics hobbyists, students, and engineers appreciate this oscilloscope for its affordability and solid feature set, making it ideal for learning and general-purpose diagnostics.

Is It Worth the Price?

Price Analysis

The Rigol DS1054Z is competitively priced for a 4-channel 50 MHz oscilloscope with advanced features. Compared to similar scopes in this category, it offers excellent value without being overly expensive.

Value Features

• 4 Channels at 50 MHz bandwidth – ideal for multi-signal analysis without extra cost.
• UltraVision technology with 12 Mpts memory (upgradable to 24 Mpts) – provides deeper waveform capture, enhancing measurement accuracy.
• High waveform capture rate of up to 30,000 wfms/s – allows quick and detailed signal observation.
• Large 7” WVGA screen – improves visibility and ease of use, reducing the need for additional displays.

Vs. Competitors

Compared to other lab oscilloscopes with similar specs, the DS1054Z stands out for its feature set at a lower price point. Many competitors charge significantly more for comparable memory depth and channel count.

Final Verdict

The Rigol DS1054Z offers exceptional value for money, making it a smart purchase for both hobbyists and professionals needing a reliable 4-channel oscilloscope with advanced capabilities.
