When working with electronic signals, having a reliable oscilloscope is essential. You might find yourself unsure about which model fits your needs best.
Choosing the right oscilloscope can be confusing. There are many factors to consider, like bandwidth, sample rate, resolution, and the number of channels. Some models offer advanced features but come at a higher price, while others focus on simplicity and affordability. It’s common to struggle with balancing performance and budget, especially when the differences are technical and not always clear.
This article aims to clarify these choices. It will help you understand what matters most so you can find the oscilloscope that suits your specific requirements.
Below, you’ll find options grouped by their capabilities and features. Different users have different needs, so the right choice depends on what you prioritize in your work.

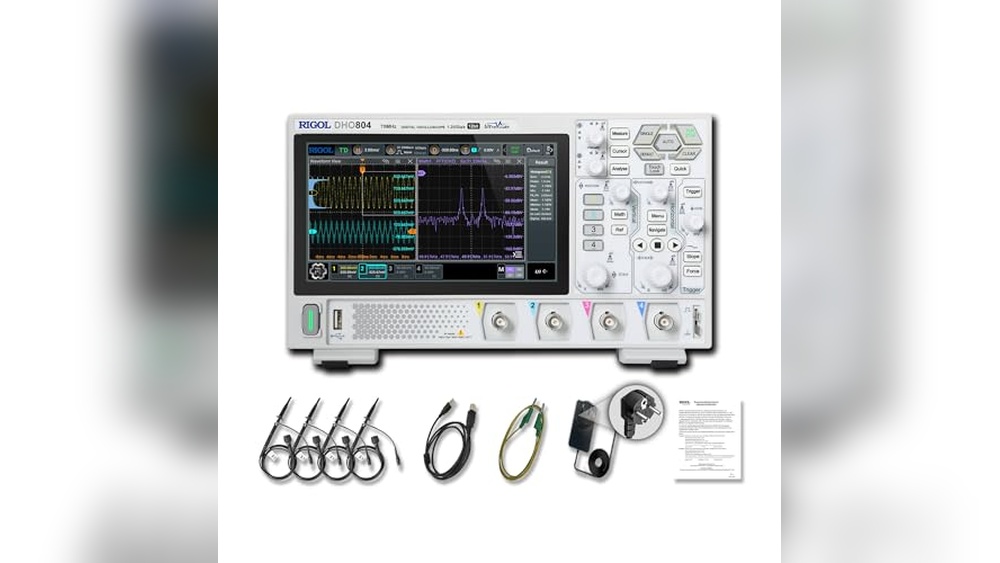

Rigol 70mhz Digital Oscilloscope
The Best Rigol Oscilloscope for engineers and electronics enthusiasts needing precise and portable lab measurement tools.
.ap-btn{ transition:transform .15s ease, filter .15s ease; } .ap-btn:hover{ transform:translateY(-1px); filter:brightness(.95); }
The RIGOL 70MHz Digital Oscilloscope is a compact lab oscilloscope designed to accurately capture and analyze complex electronic signals. Its standout 12-bit ADC vertical resolution enhances signal detail, making it ideal for research, development, and troubleshooting in demanding environments where precision is critical.
Using this oscilloscope feels intuitive thanks to its 7-inch HD touchscreen and portable design, which supports USB-C power including power bank use for field work. It offers reliable performance and quick waveform capture, helping save time and giving confidence during diagnostics and testing.
- High-resolution 12-bit ADC for precise signal capture
- 70 MHz bandwidth with 1.25 GSa/s sampling rate for detailed waveform analysis
- Built-in digital multimeter, frequency counter, and protocol decoding support
- Remote control via USB, LAN, HDMI with Android OS for flexibility
- Compact and portable with USB-C power input and power bank compatibility
Who Should Consider This Oscilloscope
This oscilloscope is well suited for engineers, electronics researchers, and advanced hobbyists who need a high-resolution and portable instrument for detailed waveform analysis and protocol decoding. It’s especially helpful for those working in labs or onsite diagnostics requiring remote control and development support.
If you need an oscilloscope with bandwidth beyond 70 MHz or simpler, less feature-rich devices for casual use, this might be more than necessary. However, its comprehensive measurement capabilities remove uncertainty during complex signal testing and development.
Before buying, make sure you have a workflow that benefits from touchscreen controls and remote connectivity. Rest assured, its robust design and rich feature set provide lasting reliability and confidence for various lab and field applications.
Rigol 500mhz 12-bit Oscilloscope
The Best Rigol Oscilloscope for engineers and technicians needing high-resolution, multi-channel signal analysis.
.ap-btn{ transition:transform .15s ease, filter .15s ease; } .ap-btn:hover{ transform:translateY(-1px); filter:brightness(.95); }
The Rigol MHO954 is a digital oscilloscope designed to handle demanding signal analysis with a 500MHz bandwidth and 4GSa/s sampling rate. It solves the problem of capturing high-speed signals accurately, offering a true 12-bit ADC that provides 16 times more vertical resolution than conventional 8-bit scopes, enabling detection of subtle signal details.
Using this oscilloscope feels intuitive thanks to its 7-inch HD touchscreen powered by Android, with built-in Wi-Fi and Bluetooth for remote control. It’s reliable for both lab and field use, helping me quickly set up and analyze complex signals with confidence while saving valuable time.
- Includes a 50 MHz arbitrary function generator option for versatile testing
- Integrated 4-channel oscilloscope plus 16-channel logic analyzer (optional probe)
- Deep memory up to 500Mpts for long-duration signal capture
- Supports protocol decoding and digital voltmeter functions
- Ultra-portable design with Type-C power input
Who Should Consider This Rigol Oscilloscope
This oscilloscope is ideal for professionals and hobbyists who require high-resolution, multi-channel measurements in a compact form factor. If you need detailed waveform analysis with added logic and arbitrary waveform generation capabilities, this unit fits well.
If you only need basic waveforms or lower bandwidth, a simpler and less expensive model might suffice. However, the MHO954 removes confusion around signal fidelity and measurement accuracy by delivering clear, rich data, making troubleshooting smoother.
One tip: take advantage of the built-in Wi-Fi and Bluetooth for remote monitoring to optimize workflow. Rest assured, the device’s robust build and comprehensive features provide dependable performance for complex tasks without overwhelming the user.
Rigol 250mhz Digital Oscilloscope
The Best Rigol Oscilloscope for engineers and hobbyists seeking precise signal analysis and versatile lab equipment.
.ap-btn{ transition:transform .15s ease, filter .15s ease; } .ap-btn:hover{ transform:translateY(-1px); filter:brightness(.95); }
The Rigol 250MHz Digital Oscilloscope is a high-performance lab instrument designed to capture and analyze electronic signals with precision. It solves the challenge of detecting small and complex signals by offering ultra-low background noise and 12-bit vertical resolution, ensuring clear and accurate waveform visualization.
Using this oscilloscope feels intuitive thanks to its 7-inch high-definition touchscreen and the new Flex knob for easy operation. It delivers reliable results with up to 4 analog channels and a built-in signal generator, making it a dependable tool for both professionals and enthusiasts in electronics development and troubleshooting.
Key Features & Strengths
- Up to 250 MHz analog bandwidth with 4 analog channels for versatile signal analysis
- Ultra-low noise and 12-bit hardware resolution for capturing subtle signal details
- Includes 16 optional digital channels and a built-in 1-channel signal generator
- 7-inch 1024 x 600 touchscreen with real-time waveform capture up to 1 million wfms/s
- Multiple connectivity options: USB Device & Host, LAN, and HDMI ports
- Compact and lightweight design: approx. 10.5 x 6.4 x 3.0 inches, 3.9 lbs
Is This Oscilloscope Right for You?
If you need a reliable oscilloscope for detailed signal analysis and multiple channel support, this Rigol model is a solid choice. It suits engineers, technicians, and serious hobbyists who want clear signal visualization and advanced features like waveform search and digital signal analysis.
However, if your work requires bandwidth well beyond 250 MHz or very specialized features, you might want to consider higher-end or more specialized models. This oscilloscope removes the stress of missing small signals thanks to its high resolution and noise reduction, making your measurements more trustworthy.
For best results, pair this oscilloscope with quality probes and take advantage of its built-in signal generator to validate your circuits. With Rigol’s 3-year warranty and user-friendly interface, you can approach your projects with confidence and less hassle.
Rigol 4-channel 50 Mhz Oscilloscope
The Best Rigol Oscilloscope for engineers and hobbyists needing reliable multi-channel waveform analysis.
.ap-btn{ transition:transform .15s ease, filter .15s ease; } .ap-btn:hover{ transform:translateY(-1px); filter:brightness(.95); }
The Rigol DS1054Z is a digital oscilloscope designed for precise signal analysis with its 4 input channels and 50 MHz bandwidth, ideal for troubleshooting and research in electronics labs. Its UltraVision memory capability, offering 12 Mpts standard and upgradable to 24 Mpts, significantly enhances waveform capture depth, making it easier to analyze complex signals without missing detail.
Using this oscilloscope feels intuitive and efficient thanks to its large 7-inch WVGA display, which provides clear waveform visualization. Whether you are debugging circuits or performing educational demonstrations, the device’s speed and reliability save time and provide confidence in your measurements.
- 4 input channels supporting simultaneous multi-signal analysis
- High waveform capture rate of up to 30,000 wfms/s for detailed observation
- Large, clear 7″ color screen enhances readability and user comfort
- Multiple connectivity options including USB HOST, USB DEVICE, LAN, and auxiliary ports
Who Should Consider This Oscilloscope
This oscilloscope is well-suited for electronics engineers, technicians, and serious hobbyists who require a dependable and feature-rich instrument without the complexity of higher-end scopes. If you need to analyze multiple signals simultaneously or require deep memory for capturing detailed waveforms, this model will meet those needs.
However, if your work demands bandwidths beyond 50 MHz or specialized protocol decoding, you might want to consider a higher-tier model. The DS1054Z removes the confusion of signal analysis by providing clear visuals and fast waveform capture, helping you focus on your projects rather than your tools.
A practical tip: take advantage of the software upgrade option to expand memory as your needs grow, ensuring this scope stays relevant over time. Rest assured, the Rigol DS1054Z offers a reliable and user-friendly experience that stands up to daily use in lab environments.
Rigol Digital Oscilloscope 250mhz 4-ch
The Best Rigol Oscilloscope for engineers and technicians needing high-resolution, multi-channel signal analysis.
.ap-btn{ transition:transform .15s ease, filter .15s ease; } .ap-btn:hover{ transform:translateY(-1px); filter:brightness(.95); }
The Rigol Digital Oscilloscope offers a reliable lab tool with up to 250 MHz analog bandwidth and 4 analog channels, designed to capture small signals with ultra-low background noise. Its 12-bit vertical resolution ensures precise signal clarity, solving the common problem of missing subtle signal details during complex measurements.
Using this oscilloscope feels intuitive thanks to its 7-inch high-definition touchscreen and new Flex knob, which improve control and navigation. It saves time by supporting waveform search and real-time brightness functions, giving users confidence and efficiency during detailed signal analysis.
Key Strengths
- High-resolution 12-bit hardware for pure signal capture
- Up to 250 MHz bandwidth with 4 analog and optional 16 digital channels
- Large 7-inch touchscreen with user-friendly Flex knob
- Supports advanced functions like waveform search and digital signal analysis
- Lightweight and compact design with multi-port connectivity (USB, LAN, HDMI)
Who Should Consider This
This Rigol oscilloscope is ideal for professional engineers, technicians, and advanced hobbyists who require detailed multi-channel signal analysis and high sample rates. It may be less suitable for casual users needing only basic waveform viewing due to its advanced features and price point.
It removes confusion around signal clarity by providing ultra-low noise and high vertical resolution, making precise measurements easier. A practical tip: leverage the waveform search feature to quickly identify anomalies during complex troubleshooting. Rest assured, the 3-year warranty and trusted Rigol brand provide reliability for long-term use.
How To Choose The Right Rigol Oscilloscope For Your Needs
Consider what type of signals you will be measuring and the environment where you will use the oscilloscope. Think about the balance between bandwidth, sample rate, and resolution rather than just the highest numbers. Portability and interface options like touchscreen or remote control can influence ease of use. Reflect on whether integrated features like logic analyzers or waveform generators are necessary for your projects.
Common Mistakes And Who Should Avoid Rigol Oscilloscopes
- Expecting a Rigol oscilloscope to replace specialized high-end lab equipment for very advanced R&D.
- Choosing an oscilloscope solely based on bandwidth without considering sample rate and memory depth.
- Buying models with extra features you won’t use, which can complicate operation and increase cost.
- Assuming these scopes are ideal for beginners without prior experience; some models have steep learning curves.
- Overlooking the importance of connectivity options if remote control or software integration is essential.
Best Rigol Oscilloscope Questions Answered
What bandwidth do I really need for typical electronics work?
Bandwidth should exceed the highest frequency of signals you expect to measure. For most general electronics tasks, 50 to 250 MHz bandwidth is sufficient. Higher bandwidth models are suited for faster digital and RF signals.
Is a higher sample rate more important than bandwidth?
Both are important but serve different purposes. Sample rate affects how accurately waveforms are digitized, while bandwidth limits the frequency range. Aim for a sample rate at least 2.5 times the bandwidth for accurate signal representation.
Do I need a 12-bit resolution oscilloscope?
Higher resolution improves signal detail and noise performance. It matters most if you work with low-level or subtle signals. For basic troubleshooting, 8-bit resolution may be adequate.
How useful are integrated features like logic analyzers or waveform generators?
These features add versatility but may not be necessary for all users. Consider your workflow and whether combining instruments saves space and cost. Optional add-ons allow flexibility without extra upfront expense.
Can I control Rigol oscilloscopes remotely?
Certain models support USB, LAN, or Wi-Fi connectivity for remote control. This can improve convenience for automated testing or when accessing the device from another room. Verify compatibility with your software environment.
What should I know about the user interface?
Some Rigol oscilloscopes have touchscreens and intuitive controls, while others rely on knobs and buttons. Choose based on your comfort with digital interfaces and whether you prefer traditional controls or modern touch navigation.
Are these oscilloscopes suitable for beginners?
Rigol scopes offer powerful features but may be complex for newcomers. Beginners should be prepared to spend time learning or consider simpler models. Reading manuals and tutorials helps ease the learning curve.
Final Thoughts On Selecting A Rigol Oscilloscope
Choosing a Rigol oscilloscope involves balancing your measurement needs with usability and budget. Understanding your specific application will guide you toward the right model without overpaying for unnecessary features. Taking time to assess trade-offs helps ensure your selection fits your workflow and skill level.
With thoughtful consideration, you can feel confident in your decision and rely on your oscilloscope as a dependable tool. Careful choice leads to smoother testing and clearer results for your projects ahead.
