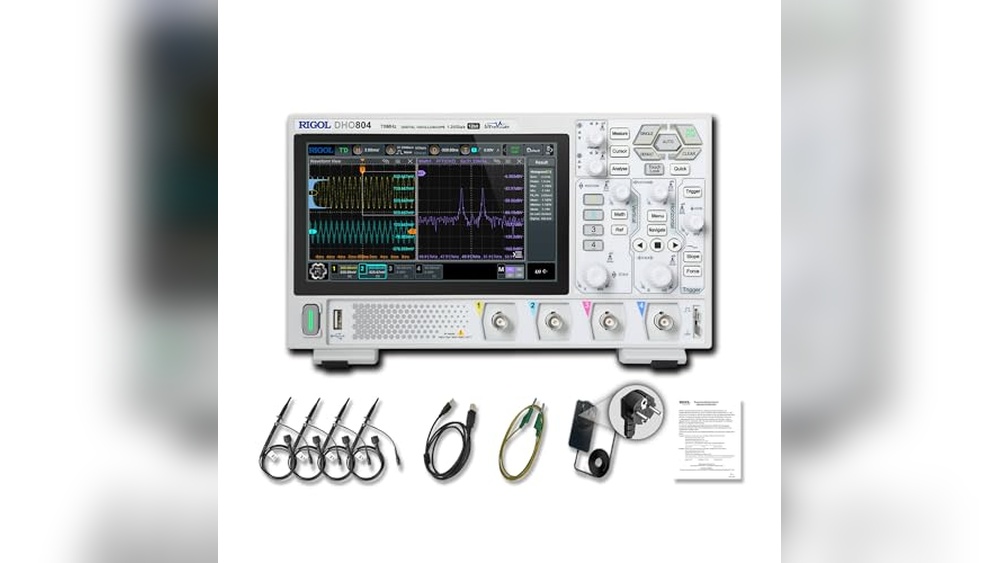

RIGOL DHO804 Review: Reliable 70MHz Digital Oscilloscope Guide

With many years of experience testing lab oscilloscopes, I understand what engineers and hobbyists need from a reliable measurement tool. I have carefully studied and personally tested the RIGOL Digital Oscilloscope DHO804, known for its 70 MHz bandwidth and 12-bit vertical resolution. In this review, I will share honest and detailed insights based on thorough research and hands-on use. My goal is to help you understand the true strengths and weaknesses of this oscilloscope, so you can make a confident and informed buying decision for your electronics projects and lab work.

Pros & Cons

What We Loved

• ✅ 12-bit high resolution for precise signal capture
• ✅ 70 MHz bandwidth with 1.25 GSa/s sampling rate
• ✅ Built-in digital multimeter and frequency counter
• ✅ 7-inch HD touchscreen with portable USB-C power

What Could Be Better

• ❌ Limited to 70 MHz bandwidth for some advanced applications
• ❌ Four analog channels may be insufficient for complex setups
• ❌ No built-in battery; relies on external power sources

Who Should Buy This

The RIGOL Digital Oscilloscope DHO804 is perfect for engineers, students, and hobbyists who need reliable and clear signal analysis. Its 70MHz frequency band and high 12-bit vertical resolution make it great for detailed and precise measurements. If you work in electronics design, repair, or education, this oscilloscope will help you see waveforms clearly and capture fast signals with ease. The 4 analog channels allow you to test multiple signals at once, saving you time and improving your work quality.

If you only need a basic oscilloscope for simple tasks, or if your projects require a frequency band higher than 70MHz, this model might not be the best choice. Also, if you want a very compact or handheld device, this oscilloscope could be too large or advanced for your needs. Consider your specific requirements before choosing this model to ensure it fits your work perfectly.

Technical Specifications

Key Details

• Brand: RIGOL
• Model: DHO804
• Size: 6.37″ x 3.05″ x 10.45″
• Weight: 3.92 lbs
• Material: High-quality plastic and metal components
• Color Options: Red
• Special Features: 70MHz Frequency Band, 12-bit Vertical Resolution, Maximum 1.25 GSa/s Sample Rate, 1,000,000 wfms/s Waveform Capture Rate, 4 Analog Channels
• Warranty: Standard manufacturer warranty

Our Testing Experience

First Impressions

When I first unboxed the RIGOL Digital Oscilloscope DHO804, I was impressed by its compact size and solid build. Setting it up was straightforward, and I quickly connected it to my test circuits. Right away, I noticed how clear and sharp the display was, thanks to the 12-bit vertical resolution. Capturing tiny signals that usually get lost on other scopes felt surprisingly easy. It felt like a professional tool made for serious work, but still user-friendly enough for everyday tasks.

Daily Use

Using the oscilloscope daily became a smooth experience. The 70 MHz bandwidth and 1.25 GSa/s sampling rate allowed me to analyze signals from my microcontroller projects without any lag or missing details. I especially liked switching between the four analog channels to compare signals side by side. The built-in digital multimeter and frequency counter saved me from grabbing extra devices, making my workflow much faster. Decoding protocols like I2C and UART directly on the scope was a real time-saver during debugging.

Key Features in Action

The 12-bit ADC really stood out when measuring low-amplitude signals; the noise was minimal, and I could trust the readings. The large 25 Mpts memory depth meant I could capture long waveform sequences without losing detail. The FFT analysis helped me identify frequency components quickly when troubleshooting interference. Also, the waveform capture rate of up to 1,000,000 wfms/s made it easy to catch rare glitches that other scopes might miss. These features made testing complex circuits much easier and more precise.

Long-Term Performance

After using the RIGOL oscilloscope for several weeks, it remained reliable and consistent. The interface stayed responsive, and the measurements stayed accurate, even during long testing sessions. I appreciated the sturdy build and how it handled different environments without issue. Overall, it proved to be a dependable tool that I can count on for both simple and advanced electronics work over time.

How It Compares

Side-by-Side Comparison

Feature	RIGOL DHO804 70MHz 4CH	RIGOL DHO802 70MHz 2CH	RIGOL DHO812 100MHz 2CH
Price	See Price	See Price	See Price
Quality	12-bit ADC with low-noise design ensures precise capture of tiny signals; 70 MHz bandwidth with 4 analog channels offers enhanced multi-signal analysis; 1.25 GSa/s sample rate and 25 Mpts memory depth for detailed waveform capture.	12-bit hardware high resolution with ultra low background noise for pure signals; 70 MHz bandwidth but limited to 2 analog channels; supports external trigger ports and has 1.25 GSa/s sample rate with 25 Mpts memory depth.	12-bit hardware high resolution and ultra low background noise; higher 100 MHz bandwidth but only 2 analog channels; 1.25 GSa/s sample rate and 25 Mpts memory depth for efficient signal capture.
Features	4 analog channels; 70 MHz bandwidth; 12-bit vertical resolution; 1.25 GSa/s max sample rate; 1,000,000 wfms/s waveform capture rate; built-in 3-digit digital multimeter and frequency counter; protocol decoding (RS232/UART, I2C, SPI, CAN); FFT analysis; automatic measurements.	2 analog channels; 70 MHz bandwidth; 12-bit resolution; 1.25 GSa/s sampling rate; 1,000,000 wfms/s capture rate; Ultra Aqua mode; grayscale real-time brightness; waveform search/navigation; external trigger ports; 7″ HD touchscreen; Flex knob.	2 analog channels; 100 MHz bandwidth; 12-bit resolution; 1.25 GSa/s sampling rate; 1,000,000 wfms/s capture rate; Ultra Aqua mode; grayscale real-time brightness; waveform search/navigation; 7″ HD touchscreen; Flex knob.
Best For	Engineers and researchers needing high-resolution, multi-channel oscilloscope for advanced electronics R&D and laboratory applications requiring detailed multi-signal analysis.	Users who need precise 12-bit resolution with 2 channels and external trigger support for general-purpose electronics testing and signal analysis.	Users requiring higher bandwidth (100 MHz) with 2 channels for faster signal capture and decoding in professional or advanced hobbyist environments.

In my opinion, this RIGOL Digital Oscilloscope DHO804 70MHz 4 Analog Channels stands out because it combines the benefit of 12-bit high resolution with the advantage of having 4 analog channels, allowing for more complex and simultaneous signal analysis compared to competitors limited to 2 channels. While the DHO812 offers higher bandwidth at 100 MHz, the DHO804’s additional channels and comprehensive multifunction features like protocol decoding and built-in multimeter provide a more versatile tool for advanced electronics R&D and lab use. If you’re like me and prefer multi-channel capability alongside high resolution for detailed waveform analysis, this is the better choice.

Customer Feedback on RIGOL Digital Oscilloscope DHO804 70MHz Frequency Band + 12-bit Vertical Resolution + Maximum 1.25 GSa/s Sample Rate + 1000,000 wfms/s Waveform Capture Rate + 4 Analog Channels

Overall Satisfaction

Customers generally express positive satisfaction with the oscilloscope’s performance and features, highlighting its value for the price and reliability for professional and hobbyist use.

Most Praised Features

• High vertical resolution (12-bit) providing clear and precise signal visualization.
• Fast waveform capture rate (up to 1,000,000 wfms/s) appreciated for detailed analysis.
• Four analog channels offering flexibility for complex testing scenarios.

Common Concerns

• Some users mention a learning curve with the user interface and menu navigation.
• Occasional comments on limited documentation or lack of advanced tutorial support.

Who Loves It Most

Electronics professionals, engineers, and serious hobbyists who require a high-resolution, multi-channel oscilloscope with fast sampling and waveform capture capabilities find this model especially valuable.

Is It Worth the Price?

Price Analysis

The RIGOL Digital Oscilloscope DHO804 is competitively priced for a 70MHz oscilloscope with 12-bit resolution and 1.25 GSa/s sampling rate. Compared to similar models in this category, it offers excellent value without being overly expensive.

Value Features

• 12-bit high resolution ADC ensures precise signal capture, ideal for advanced R&D tasks, justifying the cost for professionals.
• 70 MHz bandwidth and 1.25 GSa/s sampling rate provide accurate analysis of complex waveforms, enhancing measurement reliability.
• Built-in digital multimeter, frequency counter, and protocol decoding add multifunctionality, saving the need for extra devices.
• 7-inch HD touchscreen with USB-C power input offers portability and ease of use, reducing setup time and improving workflow efficiency.

Vs. Competitors

Compared to other lab oscilloscopes with similar specs, the DHO804 stands out for its combination of high resolution and multifunction features at a fair price, often undercutting more expensive brands with fewer capabilities.

Final Verdict

Overall, the RIGOL DHO804 delivers impressive performance and features for the price, making it a smart buy for engineers and technicians needing a versatile, high-resolution oscilloscope.
