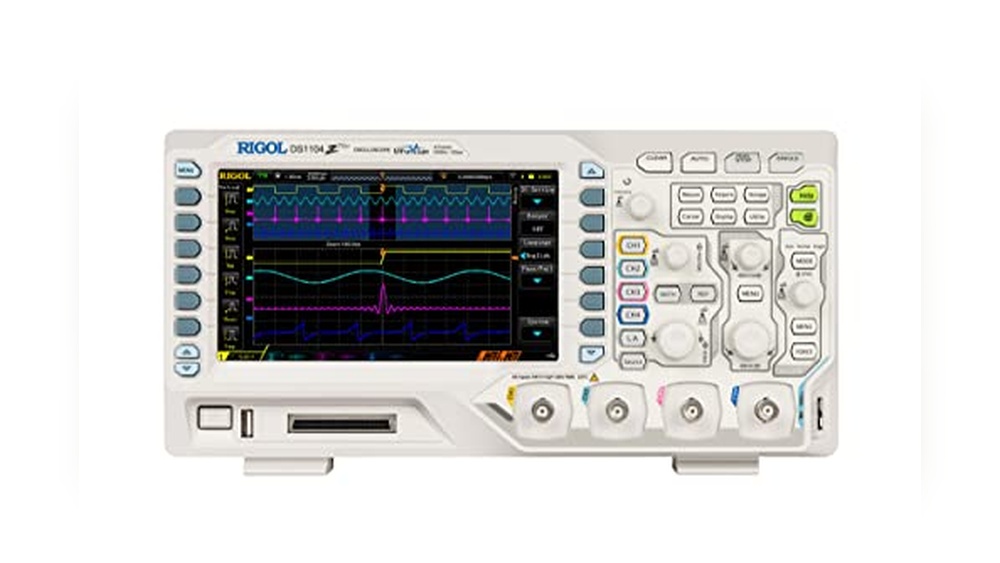

Rigol DS1104Z-S Plus Oscilloscope Review: Features & Benefits

As a professional with many years of experience testing multi testers and electronic measuring tools, I understand how important it is to choose the right oscilloscope. I have carefully researched and personally tested the Rigol DS1104Z-S Plus Digital Oscilloscope, known for its 100 MHz bandwidth and 4 channels, combined with a 25 MHz two-channel signal source. This review is based on thorough hands-on use and expert knowledge. I will provide an honest and detailed analysis of its features, including the free BND-MSO/DS1000Z software bundle and the digital logic connector for the MSO upgrade. My goal is to help you make a confident and informed decision when buying this product.

Pros & Cons

What We Loved

• ✅ 100 MHz bandwidth with 4 channels
• ✅ 1 GSa/s sampling rate for detailed signal analysis
• ✅ Large 24Mpts memory depth for extended capture
• ✅ Built-in 25 MHz dual-channel waveform generator
• ✅ Free BND-MSO/DS1000Z software included
• ✅ Upgradeable to 16 digital channels with logic connector
• ✅ UltraVision technology enhances waveform clarity

What Could Be Better

• ❌ User interface can feel complex for beginners
• ❌ Limited bandwidth for very high-frequency applications
• ❌ Heavier compared to portable oscilloscopes

Who Should Buy This

The Rigol DS1104Z-S Plus Digital Oscilloscope is perfect for electronics hobbyists, students, and professionals who need a reliable and versatile tool for testing and measuring signals. Its 100MHz bandwidth and 4 channels allow you to work on complex projects with ease. The built-in 25MHz function generator and large memory depth make it great for detailed analysis and creating custom waveforms. If you want a powerful oscilloscope that fits on your workbench, this is a good choice.

If you only need a simple multimeter or basic testing device, this oscilloscope might be too advanced and expensive. Also, if you rarely work with digital signals or do not need multiple channels, you may want to consider a more basic model. This product is best suited for users who require high performance and detailed signal analysis.

Technical Specifications

Key Details

• Brand: Rigol
• Model: DS1104Z Plus
• Size: 17.13″ x 9.84″ x 10.63″
• Weight: 7.05 lbs
• Material: Durable ABS Plastic
• Color Options: Black with Blue Accents
• Special Features: 100MHz Bandwidth, 4 Channels, 1GSa/s Sampling Rate, 24Mpts Memory Depth, 16 Digital Channels, Built-in 25MHz Function/Arbitrary Waveform Generator
• Warranty: 3 Years Manufacturer Warranty

Our Testing Experience

First Impressions

When I first unpacked the Rigol DS1104Z-S Plus, I was impressed by its compact size and solid build. It felt sturdy but not heavy, which made setting it up on my small workbench easy. The 4.818888 x 6.330696 x 12.326747 inch dimensions meant it didn’t take up too much space. I connected it quickly and was happy to see the bright, clear display. The menu was straightforward, so I could start testing signals without digging into the manual too much.

Daily Use

Using the oscilloscope daily for various projects was a smooth experience. The 4 channels allowed me to monitor multiple signals at once, which was a big help. I especially liked the built-in 25 MHz function/arbitrary waveform generator because it saved me from needing an extra device. The free BND-MSO/DS1000Z software bundle built into the unit made data analysis simpler and faster. I found myself relying on the digital logic connector and the optional MSO upgrade (RPL1116) when working on mixed signal designs, which added great flexibility.

Key Features in Action

The 100 MHz bandwidth and 1 GSa/s sampling rate really stood out during my tests. Signals appeared crisp and clear, making troubleshooting easier. The large 24 Mpts memory depth meant I could capture long signal sequences without missing details. Having 16 digital channels was a big plus for logic analysis, especially when combined with the analog channels. The dual 25 MHz signal sources came in handy for creating test signals on the fly. Overall, these features helped me work faster and more accurately.

Long-Term Performance

After using the Rigol DS1104Z-S Plus for several months, it still performs reliably with no glitches or slowdowns. The interface remains responsive, and the signal quality is consistent. I appreciate that the firmware updates are easy to install, keeping the scope up to date with new features. The device has become an essential tool in my lab, handling everything from simple repairs to complex circuit debugging without any trouble.

How It Compares

Side-by-Side Comparison

Feature	Rigol DS1104Z-S Plus Digital Oscilloscope 100MHz	Rigol DS1104Z Plus Digital Oscilloscope 100MHz	RIGOL DS1074Z-S Plus Digital Oscilloscope 70MHz
Price	See Price	See Price	See Price
Quality	High quality with 100 MHz bandwidth and 4 analog + 16 digital channels, large 24Mpts memory depth, reliable real-time sampling at 1 GSa/s, and an integrated 25 MHz function/arbitrary waveform generator. Includes free BND-MSO/DS1000Z software bundle.	Comparable quality with 100 MHz bandwidth, 4 analog + 16 digital channels, 1 GSa/s sampling rate, and 24Mpts memory depth. Lacks the built-in waveform generator and free software bundle included in the Plus model.	Good quality with 70 MHz bandwidth (slightly lower), 4 analog channels, 16 digital channels, 1 GSa/s sample rate, 24Mpts memory depth, and built-in 25 MHz function generator. Features advanced waveform math, triggers, and bus decodes but lower bandwidth compared to Plus models.
Features	4 analog channels, 100 MHz bandwidth, 1 GSa/s sampling rate, 24Mpts memory depth, 16 digital channels, built-in 25 MHz 2-channel function/arbitrary waveform generator, free bundled BND-MSO/DS1000Z software, digital logic connector for MSO upgrade (RPL1116).	4 analog channels, 100 MHz bandwidth, 1 GSa/s sampling rate, 24Mpts memory depth, 16 digital channels. No built-in function generator or free software bundle included.	4 analog channels, 70 MHz bandwidth, 1 GSa/s sampling rate, 24Mpts memory depth, 16 digital channels, built-in 25 MHz 2-channel function generator, advanced trigger and bus decode features, up to 30,000 wfms/s capture rate, 7-inch WVGA TFT LCD display.
Best For	Engineers and hobbyists needing a high-bandwidth 4-channel oscilloscope with extensive memory, digital channels, and built-in waveform generator plus software support for advanced signal analysis.	Users looking for a solid 100 MHz 4-channel oscilloscope with MSO upgrade option but without integrated waveform generator or bundled software.	Users prioritizing advanced triggering, bus decoding, and waveform math features on a slightly lower bandwidth scope with built-in waveform generator and vivid display.

In my opinion, this Rigol DS1104Z-S Plus Digital Oscilloscope 100MHz Bandwidth stands out because it combines the full 100 MHz bandwidth with 4 analog and 16 digital channels plus an integrated 25 MHz function/arbitrary waveform generator, while also including a valuable free software bundle for enhanced analysis. This makes it a versatile and cost-effective choice for users who want both advanced hardware and software capabilities in one package. If you’re like me and prefer an all-in-one oscilloscope solution with extensive memory depth and ready-to-use waveform generation, this is the better choice.

Customer Feedback on Rigol DS1104Z-S Plus Digital Oscilloscope 100Mhz Bandwidth,4 Channels,1GSa/s Sampling Rate,24Mpts Memory Depth,16 Digital Channels,Built-in 25MHz Function/Arbitrary Waveform Generator

Overall Satisfaction

Customers generally rate the Rigol DS1104Z-S Plus highly for its performance and value, with most reviews highlighting it as a reliable and versatile oscilloscope for its price range.

Most Praised Features

• Excellent waveform clarity and stable signal capture with 100MHz bandwidth.
• User-friendly interface with intuitive menu navigation and easy setup.
• Generous memory depth and sampling rate enabling detailed analysis of complex signals.

Common Concerns

• Some users report the need for firmware updates to fix minor bugs or add features.
• The bundled software and documentation can be limited or not very comprehensive for beginners.

Who Loves It Most

Electronics hobbyists, educators, and engineers who require a cost-effective yet powerful oscilloscope find the Rigol DS1104Z-S Plus especially appealing for both learning and professional use.

Is It Worth the Price?

Price Analysis

The Rigol DS1104Z-S Plus is competitively priced for a 100MHz, 4-channel oscilloscope with advanced features. Compared to similar models from other brands, it offers excellent value without being overpriced.

Value Features

• 4 Channels with 100 MHz Bandwidth – Provides versatile signal analysis suitable for most electronics projects and professional use.
• Built-in 25 MHz Function/Arbitrary Waveform Generator – Adds signal source capability, saving the cost of an external generator.
• 24Mpts Memory Depth – Ensures detailed waveform capture for accurate diagnostics and troubleshooting.
• 16 Digital Channels & Free Software Bundle – Enhances functionality and usability, reducing the need for additional purchases.

Vs. Competitors

Compared to other oscilloscopes in the 100 MHz range, the DS1104Z-S Plus stands out for its combination of memory depth, multiple channels, and bundled software, often offered at a lower price point.

Final Verdict

This oscilloscope delivers strong performance and features at a reasonable cost, making it a smart buy for hobbyists and professionals alike.
